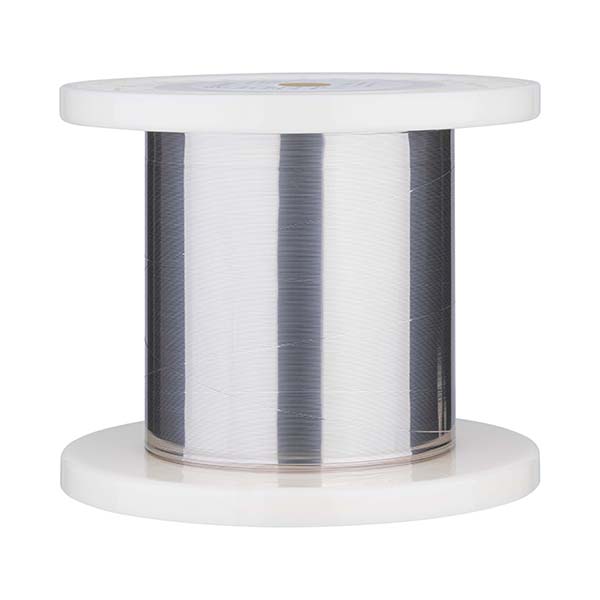

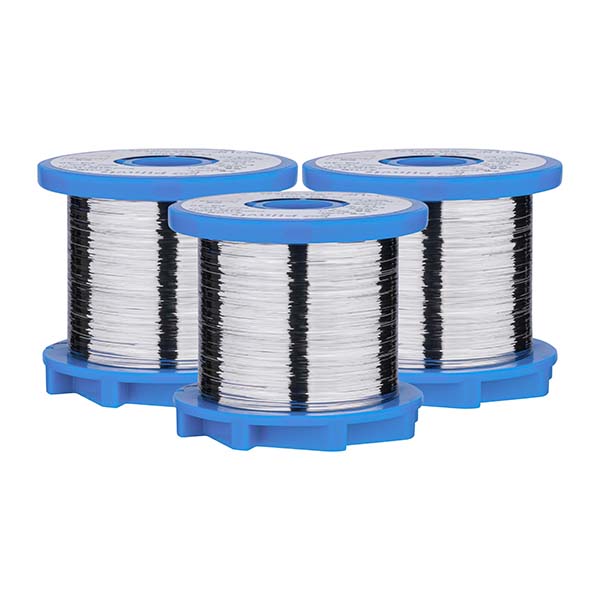

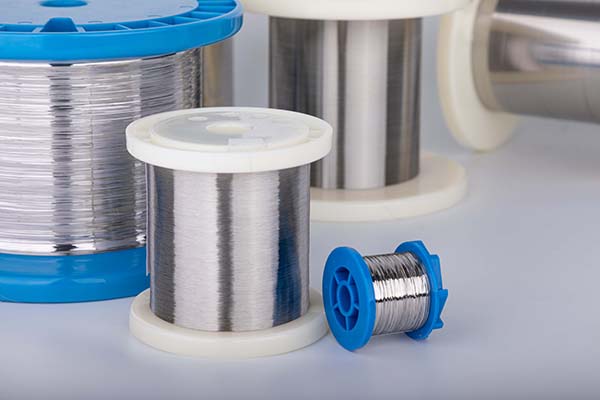

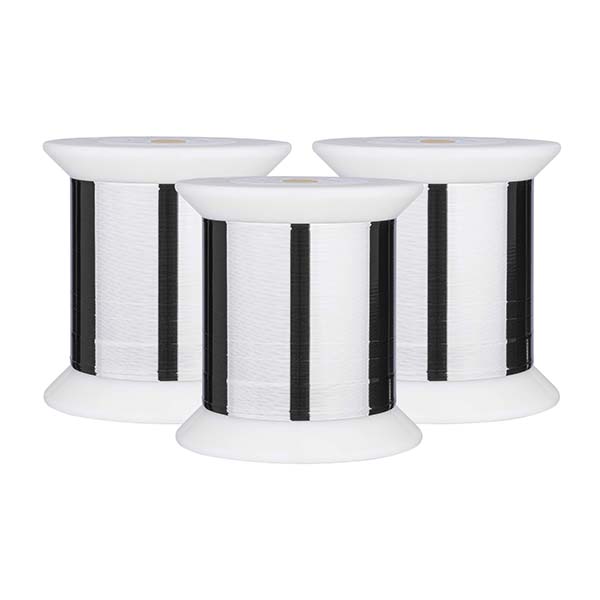

Stainless Steel Wire Round/Flat Wire
Product introduction
Due to its exceptional strength and resistance to corrosion, stainless steel is a preferred material in many industries. Offering a range of grades, from 304 to 316LVM, it can be customized for various medical and industrial purposes. This alloy is a core component in the production of medical devices

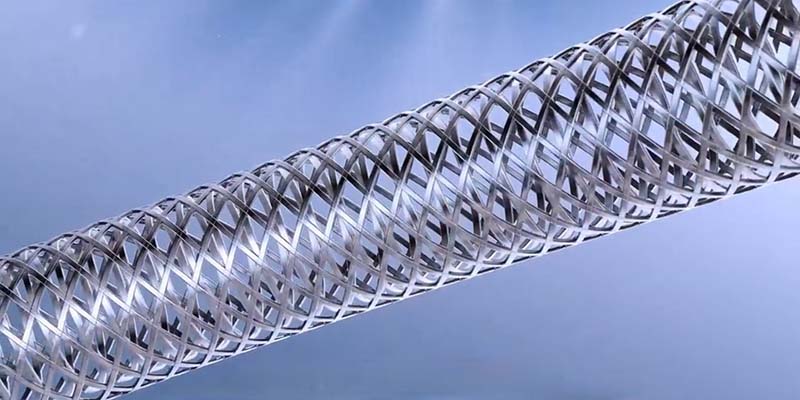

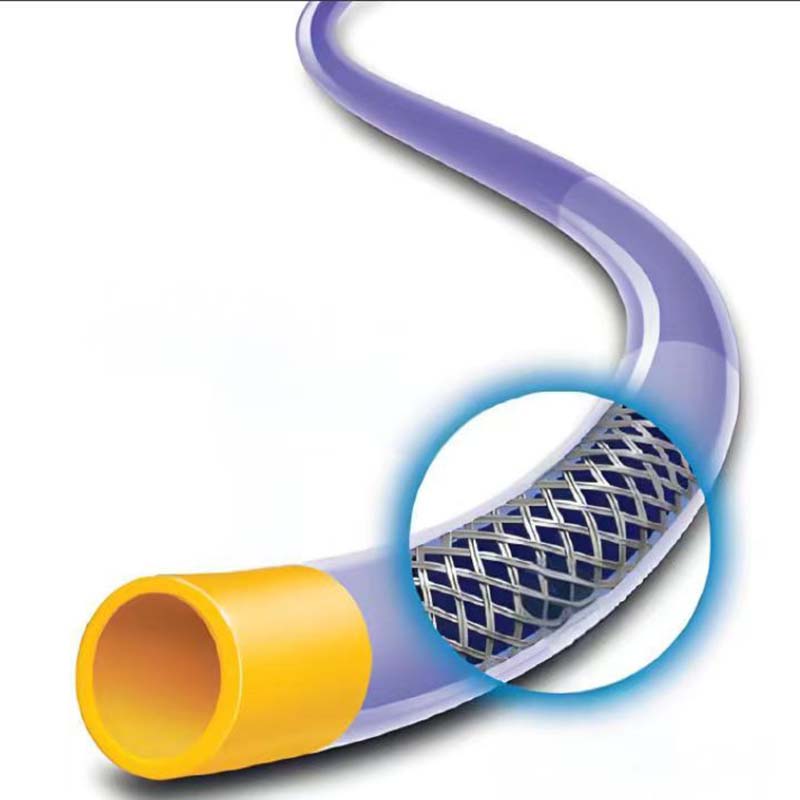

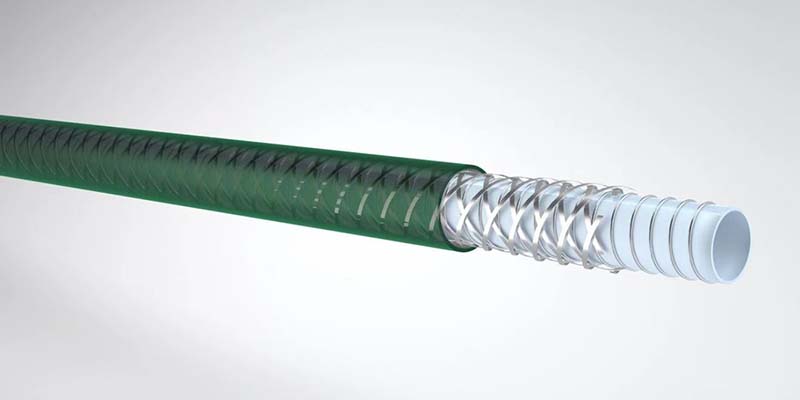

Application fields of stainless steel braided wire products - medical intervention catheters: contrast catheters, guide catheters, distal access catheters, sheaths, suction catheters, microcatheters and other medical products
Product specifications
Stainless steel wire specifications
|
Product Name |
304/304V/316/316L/316LVM Stainless steel round wire and flat wire |
|
Standard |
ASTM A313 |
|
Tensile strength |
800MPA to 3200MPA |
|
Size |
· Diameter: 0.0127mm（+/-0.003mm）-0.5mm（+/-0.005mm） · Flat wire: Thickness from 0.0127mm(+/-0.003mm) Width from 0.0254mm(+/-0.005mm) · Length: customized · Other dimensions can be customized according to specific requirements |
|
Surface State |
· Bright state
|
|
Available Shape |
Straight, Coils, On spools |
|
Available Type |
Round wire, flat wire, or customized |
304 Stainless Steel Material Chemical Composition Chemical Composition (wt%)
|
Chemical Composition (wt%) |
||||
|
C |
Si |
Mn |
P |
S |
|
≤0.08 |
＜1.00 |
＜2.00 |
＜0.045 |
＜0.03 |
|
Ni |
Cr |
|
|
|
|
8.00-10.50 |
18.00-20.00 |
|
|
|

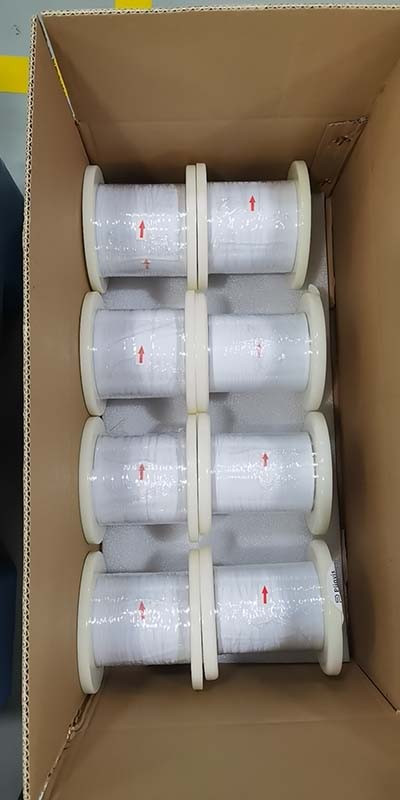

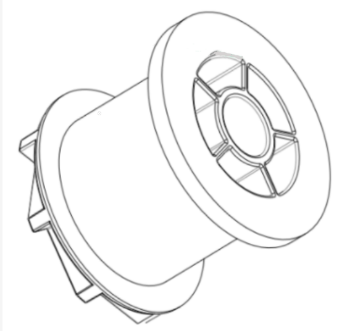

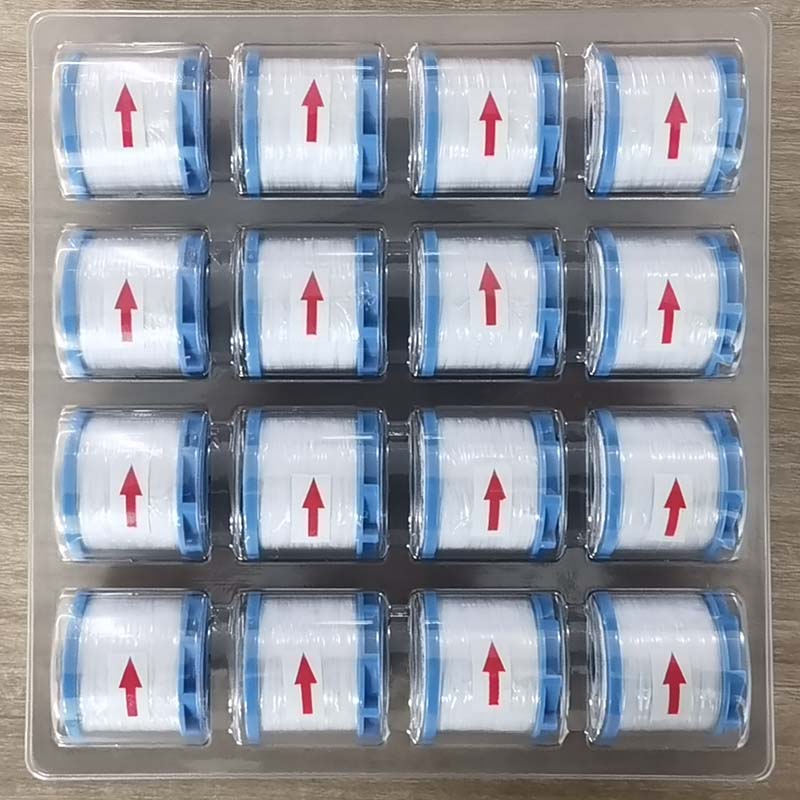

Stainless Steel Product packaging specifications
|

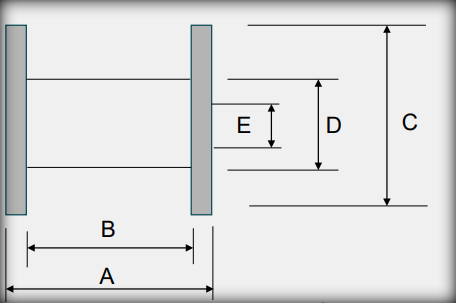

Model |
overall length-A （mm） |
Side length-C（mm） |
Shaft diameter-D（mm） |
aperture-E（mm） |
inner width-B（mm） |
weight（g） |
Maximum loading weight（Kg） |
|
P-5RW |
114 |
160.5 |
100 |
20.5 |
90 |
375 |
5 |
|
PL-1000 |
112 |
106 |
82 |
20.2 |
110 |
160 |
1.9 |
|
DIN-80 |
80 |
80 |
60 |
16 |
64 |
70 |
0.4 |
|
PA-40 |
35.1 |
40 |
30 |
10.5 |
26.2 |
22 |
0.045 |
|
P-3R.G |
110 |
130 |
79.5 |
21 |
90 |
280 |
3 |
|
P-300 |
106 |
300 |
— |
52 |
93 |
300 |
3 |
