PLAM PTFE Seris Products
Product introduction
1，PTFE mandrel
Material: Stainless steel, nickel titanium and other metals
Colors: Transparent, Black, Green
Applicable size:>0.2mm
Outer diameter tolerance:+ 0.005~0.01mm
Regular dimensions: 0.87*2600mm,4.15*800mm
Performance: Good biocompatibility, low friction coefficient, and high temperature resistance
Applicable to: Vascular intervention, digestive and urinary tract, catheter detachment, balloon welding, etc
New colors: Gray, Blue(In trial production)

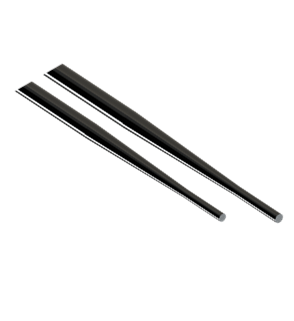

2，Variable diameter mandrel
Material: Stainless steel, nickel titanium and other metals
Colors: Transparent, Black, Green,
Applicable size:>0.2mm
Outer diameter tolerance:+ 0.005~0.01mm
Performance: Good biocompatibility, low
friction coefficient, and high temperature resistance
Applicable to: Medical guide wire, balloon welding ,and catheter delamination, etc
New colors: Gray, Blue(In trial production)

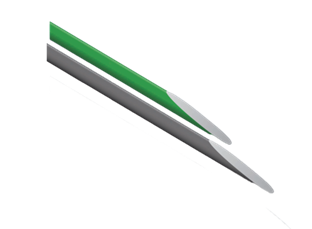

3，Slope mandrel
Material: Stainless steel, nickel titanium and other
metals
Colors: Transparent, Black, Green
Applicable size:>0.2mm
Outer diameter tolerance:+0.005-0.0lmm
Performance: Good biocompatibility, low friction coefficient, and high temperature resistance
Applicable to: Balloon welding and catheter detachment. etc
New colors: Gray, Blue(In trial production)

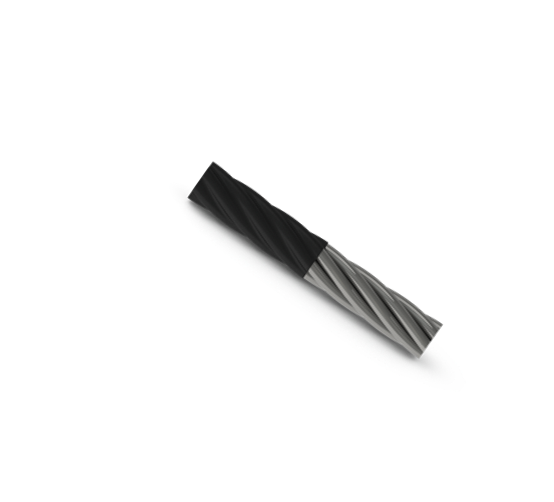

4，PTFE steel wire rope
Material: Stainless steel, nickel titanium and other metals
Colors: Transparent, Black, Green,
Applicable size:>0.2mm
Outer diameter tolerance:+ 0.005~0.03mmPerformance: Good biocompatibility, low friction coefficient, and high temperature resistance
5，PTFE round wire
Material: Stainless steel, nickel titanium and other metals
Colors: Black, Green,
Outer diameter tolerance:+0.01mm
Regular dimensions: 0.16mm,0.175mm,0.20mmPerformance: Good biocompatibility, low friction coefficient, and high temperature resistance
Applicable to: Vascular intervention, digestive and urinarytract, biopsy forceps, etc

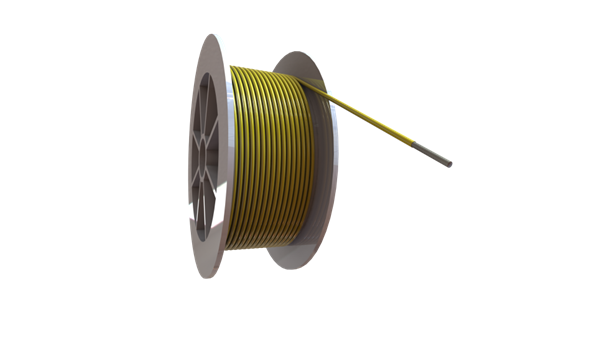

6，Pl round wire
Material: Stainless steel and other metals
Colors: Transparent
Applicable size:>0.025mm
Outer diameter tolerance:+0.00lmm
Regulardimensions:0.025mm，0.035mm
Performance: Good biocompatibility, low friction coefficient, high temperature resistance and high pressure resistance
