Safety Winged Huber Needle with extension set

Safety Huber Needles are designed to deliver medication into patients with implanted subcutaneous ports, suitable for both continuous infusions and bolus injections of treatments such as pain management drugs, chemotherapy, nutritional solutions, and blood components.

The Safety Winged Huber Needle with Extension Set is a specialized medical device designed for the safe, secure, and comfortable access of implanted ports. This product combines the benefits of a winged needle with a safety mechanism, making it an ideal choice for a variety of clinical applications.

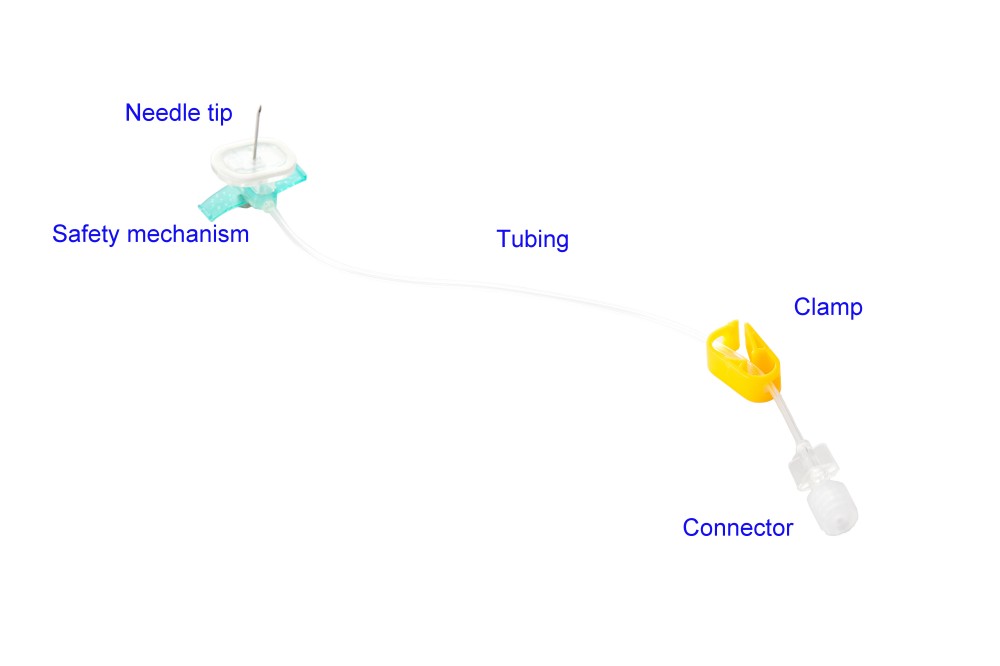

1.Needle Tube and Cut:
The high-grade stainless steel needle and its specialized cut are designed for secure and gentle penetration of the implanted port's silicone septum.

2. Large ID and High Flow:
The wide inner diameter provides enhanced flow capacity, enabling rapid and effective medication administration.

3. Color-Coded Wing:
Gauge identification is simplified with color-coded wings, allowing for rapid selection of the appropriate needle size.

4. Safety Shield:
A user-friendly safety mechanism allows for immediate shielding of the needle post-withdrawal, minimizing the risk of sharps injuries for healthcare providers and patients.

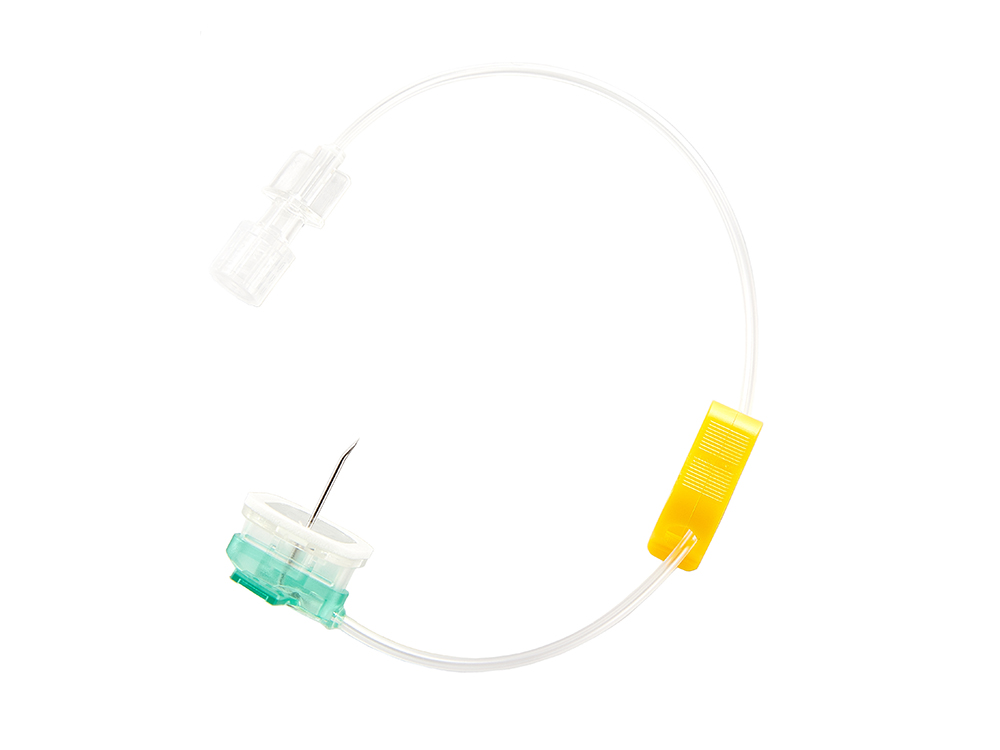

5. Extension Tube with Clamp:
The integrated extension tube, equipped with a clamp, enables convenient single-handed operation.

6. Additional Y-Port:
An integrated Y-site provides the option for supplemental drug administration.

7. Different Needle Lengths:
Available in a range of lengths, including 15mm, 20mm, 25mm, 32mm, and custom sizes, to accommodate diverse patient needs.

8. Unique Bevel Design:
The specially designed bevel promotes smooth insertion and optimizes the lifespan of the implanted access port.

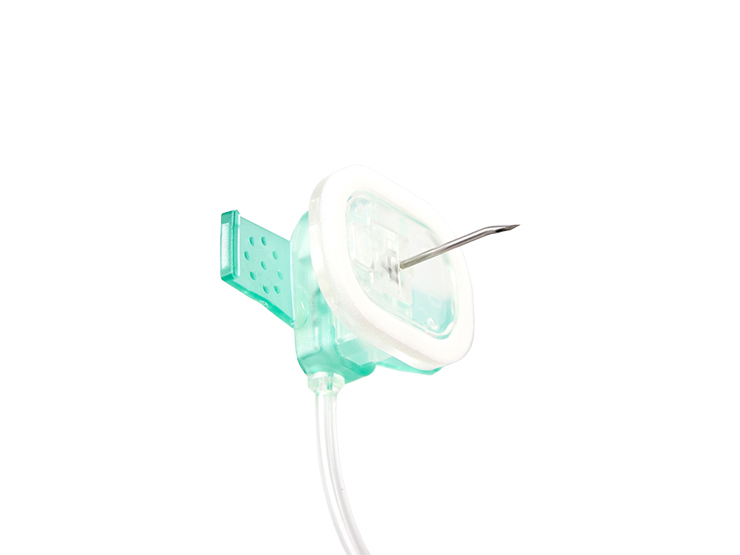

9. Soft Wings:
The soft, flexible wings provide secure and comfortable needle fixation on the port system's membrane.

Key Features:

• Winged Design: The flexible, textured wings provide a secure grip for easy insertion and help to stabilize the needle once it is in place. This reduces the risk of dislodgement and ensures a consistent flow rate.



• Integrated Safety Mechanism: A protective shield automatically deploys over the needle tip as it is withdrawn from the port, effectively shielding the sharp point and preventing accidental needlestick injuries.



• Huber Non-Coring Needle: The specially designed, non-coring needle tip pierces the port septum without cutting it. This preserves the integrity of the septum, extending the life of the port and reducing the likelihood of leaks.



• Extension Set with Clamp: The attached extension set offers a flexible connection to infusion pumps or IV bags. The integrated clamp allows for temporary interruption of fluid flow without disconnecting the line.



• Luer-Lock Connector: A standard luer-lock connector ensures a secure and leak-proof connection to other medical devices, preventing accidental disconnections.



• Transparent Tubing: The clear tubing allows for easy monitoring of fluid flow and the detection of any air bubbles or blockages.



• Latex-Free and DEHP-Free: The product is made from high-quality, biocompatible materials that are free of latex and DEHP, minimizing the risk of allergic reactions and toxicity.

Safety mechanism: To prevent accidental needlestick injuries, the integrated safety feature securely locks the needle within its protective shield.

Sharpness needle: Designed for optimal patient comfort, our needles feature a sharp stainless steel tip for smooth insertion. We can also tailor the needle wall thickness to your precise needs.

OEM printing brand: Personalize your product with our OEM branding services, allowing you to showcase your brand identity.

First-class service: We prioritize your satisfaction by actively listening to your needs and exceeding your expectations. Our dedicated team is committed to providing exceptional service and ensuring a seamless experience.

Quality Assurance:

With over 15 years of industry expertise, we adhere to rigorous quality control protocols throughout our manufacturing process.

We maintain the highest standards of quality, leveraging our extensive experience and certified quality management systems (CE, ISO, FDA 510K, MDSAP).

Your opinions are important to us. We welcome your feedback to help us refine our products and services.
