Radiofrequency Needle RF cannula with insulation coating

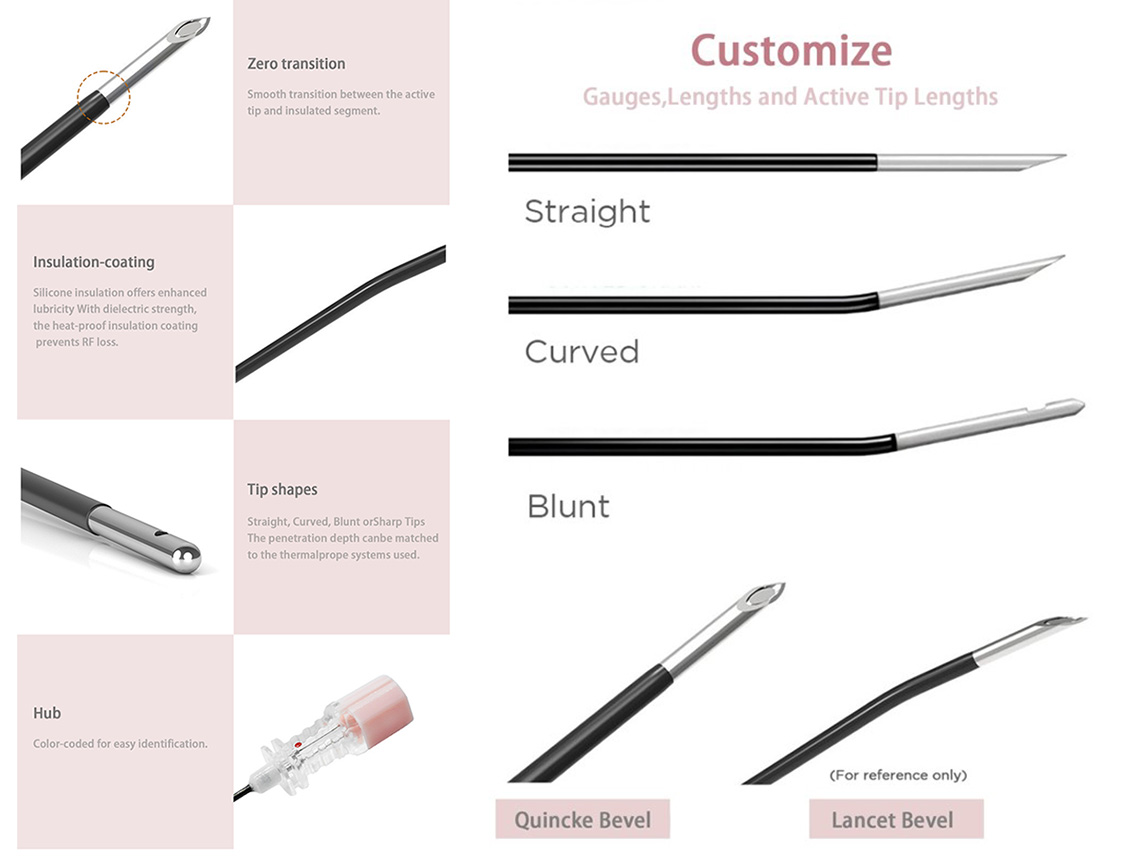

● Straight, Curved, Blunt or Sharp Tips

● Available size: 16G 18G 20G 22G or other customized size

● Available length: 5cm 10cm 15cm or other customized length

● Active Tip Length: 5mm, 10mm or other customized length

● Lubricated or Non-lubricated

● Echogenic or Non-echogenic

● Quincke Bevel or Lancet Bevel

● Insulation coating

Application

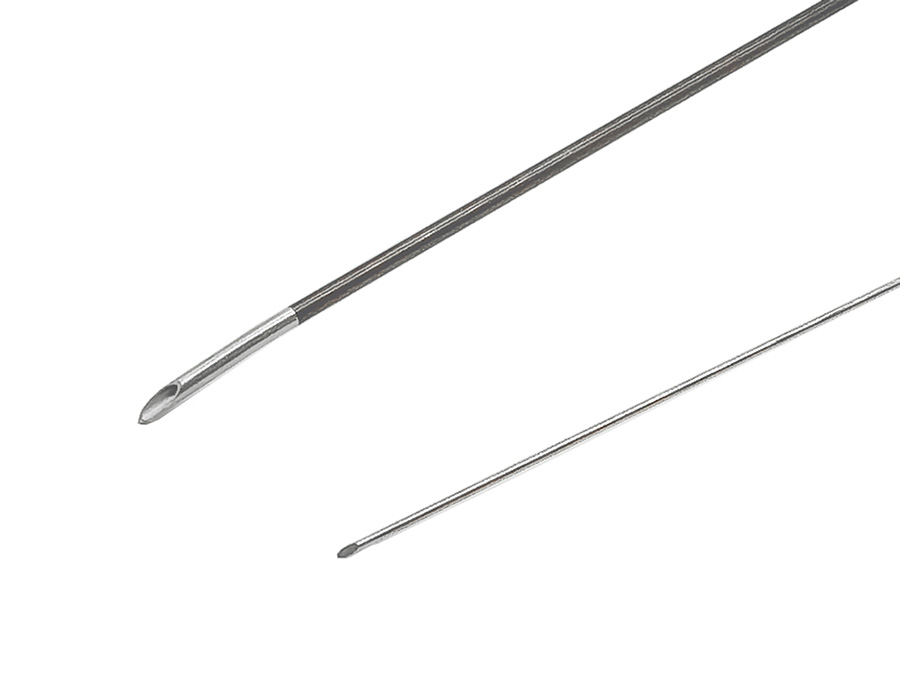

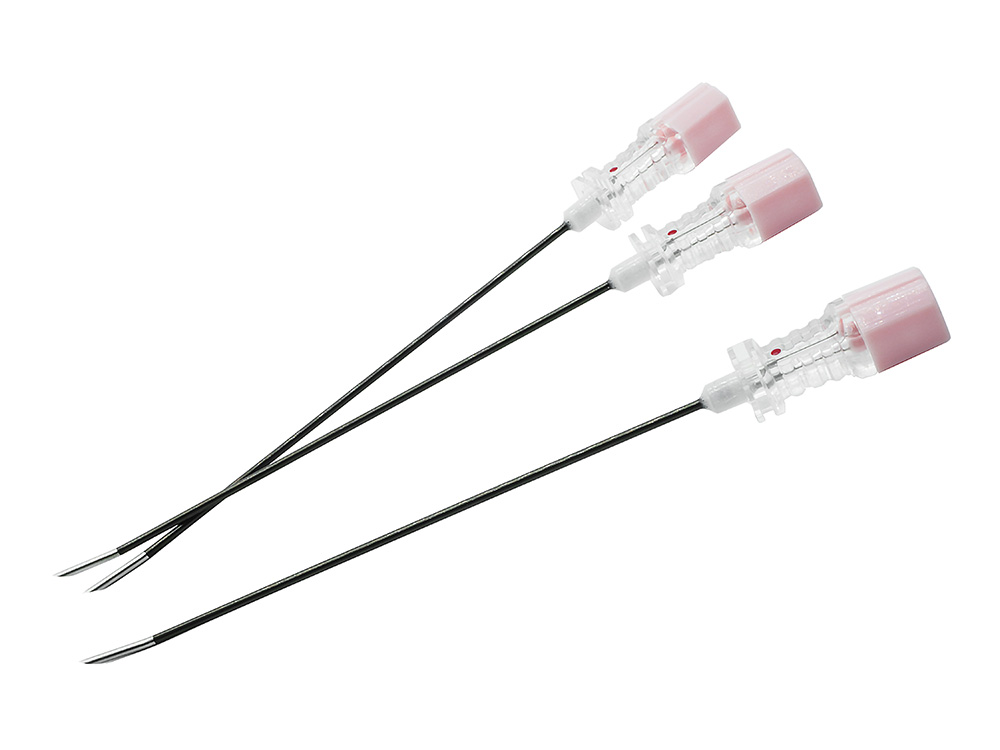

The Radiofrequency Needles are radiopaque and manufactured with a smooth tapered insulation comprised of strong enhanced dielectric material. These Radiofrequency Needles include sharp type and blunt type with curved or straight active tips.

They are designed with a uniform tapered insulation, enhanced dielectric strength, hub reference indicator, and are radiopaque. They are available in multiple sizes, needle lengths, and active tip lengths.

Specifications

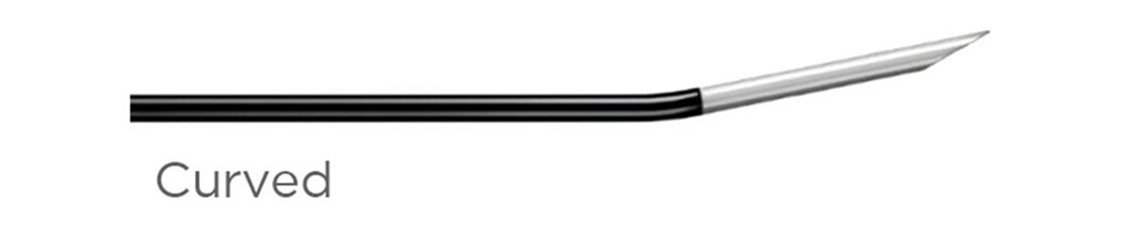

Curved
Catalog No.	Quantity	Gauge	Length	Active tip	Color
RF-SC-2205-5	Box of 25 pcs	22g	5 cm	5 mm	Black
RF-SC-2210-5	Box of 25 pcs	22g	10 cm	5 mm	Black
RF-SC-2210-10	Box of 25 pcs	22g	10 cm	10 mm	Black
RF-SC-2010-5	Box of 25 pcs	20g	10 cm	5 mm	Yellow
RF-SC-2010-10	Box of 25 pcs	20g	10 cm	10 mm	Yellow
RF-SC-2015-5	Box of 25 pcs	20g	15 cm	5 mm	Yellow
RF-SC-2015-10	Box of 25 pcs	20g	15 cm	10 mm	Yellow
RF-SC-1810-10	Box of 25 pcs	18g	10 cm	10 mm	Pink
RF-SC-1815-10	Box of 25 pcs	18g	15 cm	10 mm	Pink
RF-SC-1610-10	Box of 25 pcs	16g	10 cm	10 mm	Light Grey
RF-SC-1615-10	Box of 25 pcs	16g	15 cm	10 mm	Light Grey

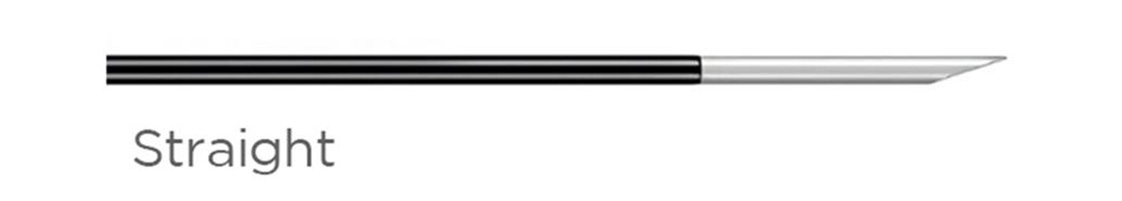

Straight
Catalog No.	Quantity	Gauge	Length	Active tip	Color
RF-ST-2205-5	Box of 25 pcs	22g	5 cm	5 mm	Black
RF-ST-2210-5	Box of 25 pcs	22g	10 cm	5 mm	Black
RF-ST-2210-10	Box of 25 pcs	22g	10 cm	10 mm	Black
RF-ST-2215-5	Box of 25 pcs	22g	15 cm	5 mm	Black
RF-ST-2215-10	Box of 25 pcs	22g	15 cm	10 mm	Black
RF-ST-2010-5	Box of 25 pcs	20g	10 cm	5 mm	Yellow
RF-ST-2010-10	Box of 25 pcs	20g	10 cm	10 mm	Yellow
RF-ST-2015-5	Box of 25 pcs	20g	15 cm	5 mm	Yellow
RF-ST-2015-10	Box of 25 pcs	20g	15 cm	10 mm	Yellow
RF-ST-1810-10	Box of 25 pcs	18g	10 cm	10 mm	Pink
RF-ST-1815-10	Box of 25 pcs	18g	15 cm	10 mm	Pink

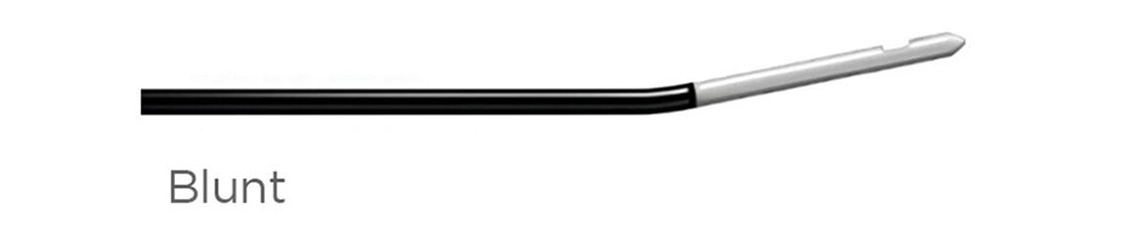

The Radiofrequency Blunt Needles are designed with an atraumatic blunt tip, uniform tapered insulation, enhanced dielectric strength, hub reference indicator and are radiopaque. They are available in multiple sizes, needle lengths, and active tip lengths.

Curved
Catalog No.	Quantity	Gauge	Length	Active tip	Color
RF-BC-2210-5	Box of 25 pcs	22g	10 cm	5 mm	Black
RF-BC-2210-10	Box of 25 pcs	22g	10 cm	10 mm	Black
RF-BC-2010-5	Box of 25 pcs	20g	10 cm	5 mm	Yellow
RF-BC-2010-10	Box of 25 pcs	20g	10 cm	10 mm	Yellow
RF-BC-2015-5	Box of 25 pcs	20g	15 cm	5 mm	Yellow
RF-BC-2015-10	Box of 25 pcs	20g	15 cm	10 mm	Yellow
Straight
Catalog No.	Quantity	Gauge	Length	Active tip	Color
RF-ST-2010-5	Box of 25 pcs	22g	10 cm	5 mm	Yellow
RF-ST-2010-10	Box of 25 pcs	22g	10 cm	10 mm	Yellow
RF-ST-2015-5	Box of 25 pcs	20g	15 cm	5 mm	Yellow
RF-ST-2015-10	Box of 25 pcs	20g	15 cm	10 mm	Yellow
