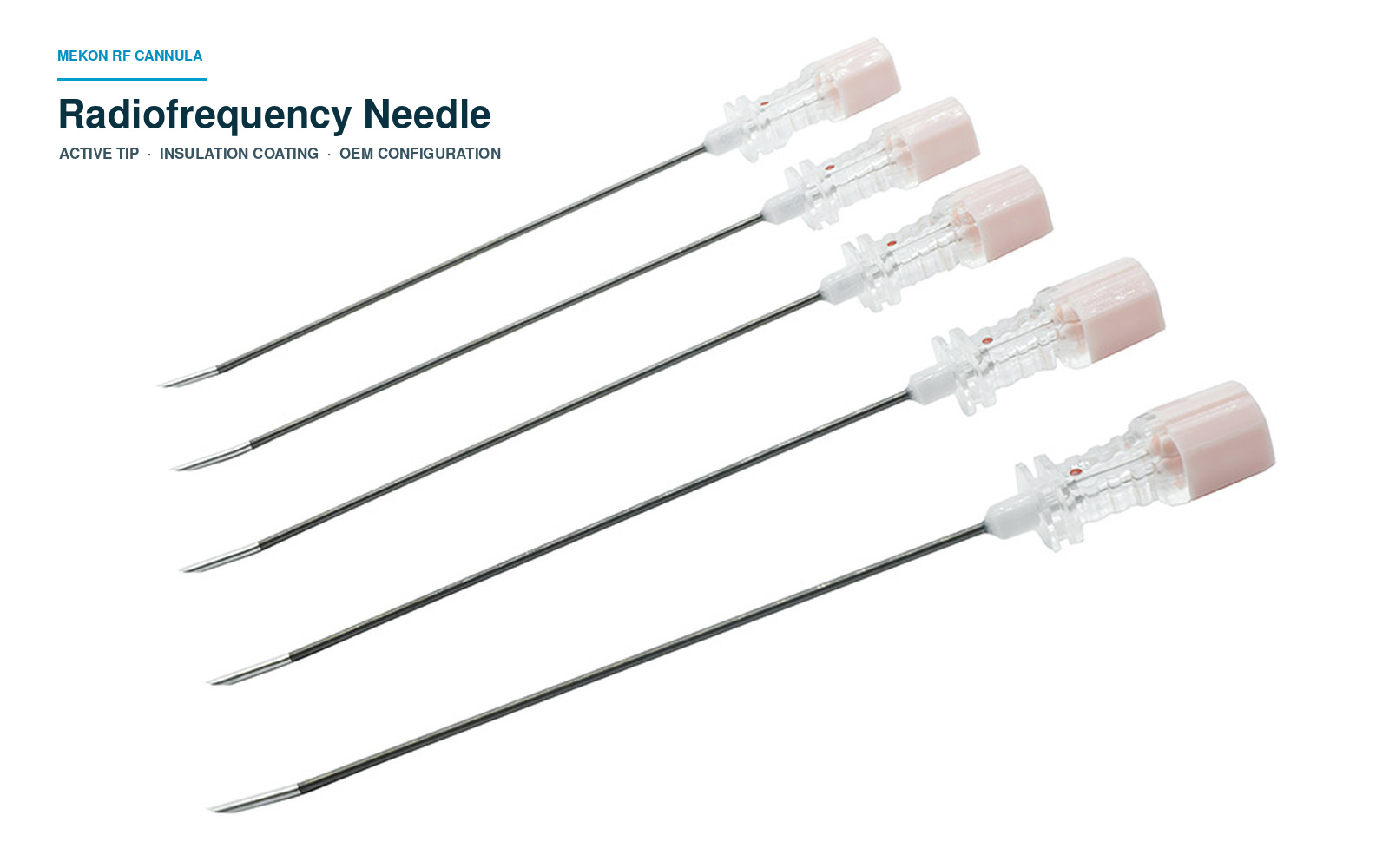

Radiofrequency Needle Design: Active Tip, Insulation Coating and OEM Configuration

2026-07-28
A radiofrequency needle is not defined by gauge and working length alone. The active tip, insulation coating, distal geometry and hub reference need to remain aligned so the needle can be evaluated as one complete component within the selected RF system.

Mekon’s radiofrequency needle and RF cannula range includes straight and curved configurations together with sharp and blunt distal-tip options, multiple active-tip lengths, radiopaque needle designs and project-specific insulation choices. The appropriate configuration should be confirmed together with the compatible electrode, generator and complete device program.

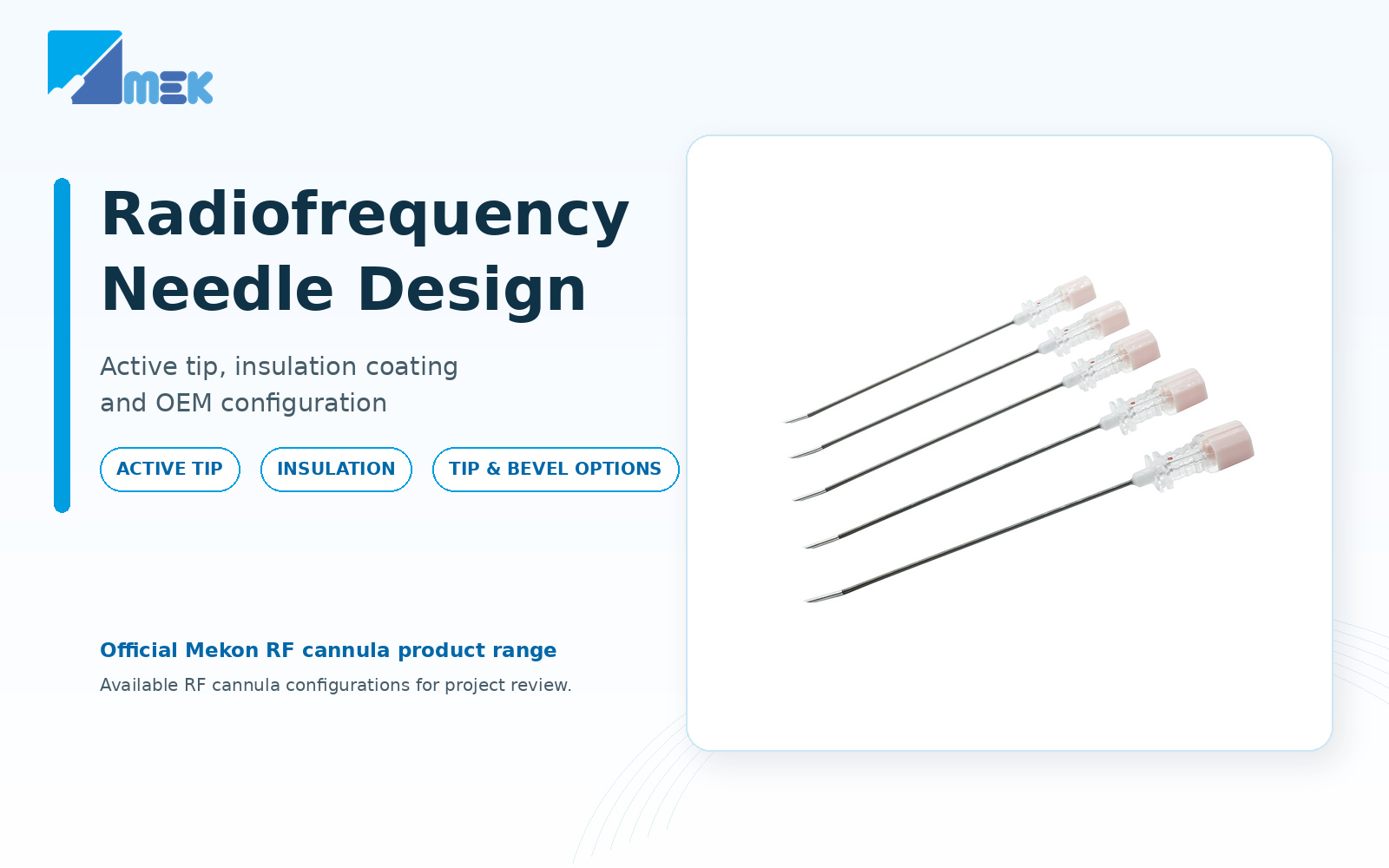

Mekon insulated radiofrequency needles in multiple RF cannula configurations
Mekon RF cannula range with different lengths and distal configurations
Active TipExposed distal region reviewed according to the selected project configuration
InsulationTapered coating and transition consistency along the needle shaft
Tip ConfigurationStraight or curved orientation, with sharp or blunt distal-tip options
Hub ReferenceOrientation and product identification considered during assembly

01 Why RF Needle Design Is a System Question

In an RF needle program, the distal conductive region and the insulated shaft perform different roles within the complete device. The exposed active tip is positioned at the distal end, while the remaining shaft is insulated. Their relationship needs to be defined together with the tip profile, working length, hub orientation and compatible electrode.

This is why two needles with the same gauge and overall length may still represent different product configurations. Active-tip length, insulation boundary, straight or curved orientation, sharp or blunt distal form, lubrication and visibility options can all change the final device specification.

System compatibility RF needle dimensions and connections should be confirmed against the selected electrode, generator and intended medical-device program rather than evaluated as an isolated cannula.

02 Active Tip Length and Distal Geometry

Active-tip length describes the exposed distal section of the RF cannula. It is not simply a catalog value: the active region needs to be located consistently relative to the needle tip and the end of the insulation coating.

The distal geometry also needs to remain repeatable. Mekon’s RF needle range supports straight and curved configurations together with sharp and blunt distal-tip options. Orientation and distal form are separate but connected configuration dimensions. For OEM development, the selected combination should be reviewed together with active-tip length, needle diameter, working length and hub reference.

Active-tip position The exposed distal region should remain consistent in length and location across development samples and routine production.
Tip configuration Straight or curved orientation and sharp or blunt distal form need to be matched with the complete RF system and project requirements.

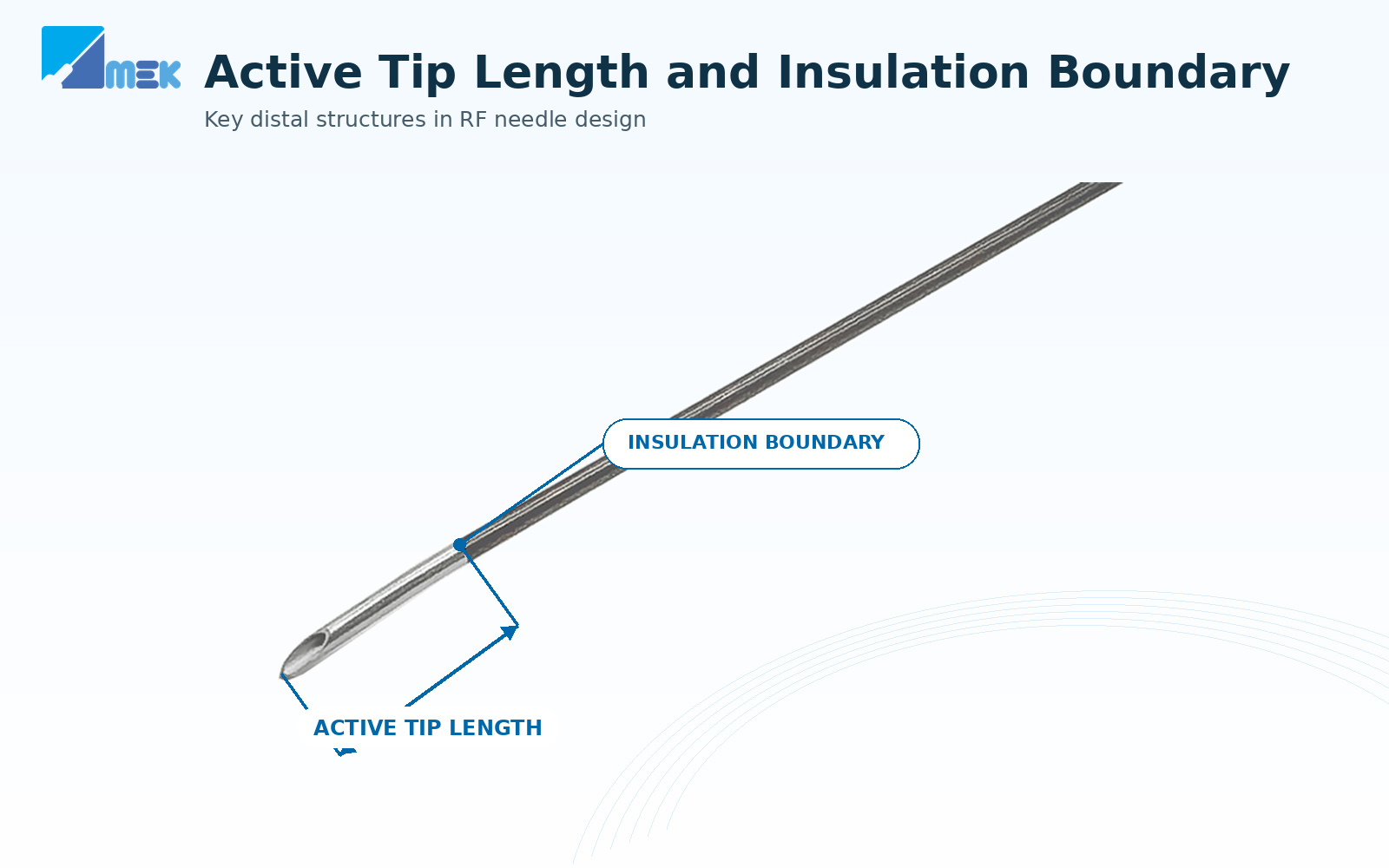

RF cannula active tip length and insulation boundary
Active tip length is measured from the distal tip to the insulation boundary

03 Insulation Coating and Boundary Control

The insulated section of an RF cannula needs a continuous surface and a controlled transition to the exposed active tip. The product page describes a smooth tapered insulation made from enhanced dielectric material, with the needle available in radiopaque configurations.

From a manufacturing perspective, coating coverage, surface condition, adhesion, thickness consistency and the position of the distal boundary need to be included in the project requirements. The coating should also be reviewed after downstream processes such as assembly, cleaning, packaging and sterilization.

Continuous shaft coverage The insulation surface should be reviewed along the working shaft for continuity and visible defects.
Controlled distal transition The boundary between the insulated shaft and exposed active tip needs a repeatable position and finish.

04 Tip Profile, Visibility and Hub Reference

RF tip selection should be reviewed across separate configuration dimensions. The distal section may be straight or curved, while the distal form may be sharp or blunt. Bevel profile is a further consideration, with Quincke bevel and a Lancet bevel reference included among the project options. Because the Lancet illustration is marked “for reference only,” its final availability and detailed geometry should be confirmed for the selected project. Radiopaque construction and echogenic or non-echogenic options may also be reviewed.

A hub reference indicator can support recognition of needle orientation, particularly when the selected distal design is directional. For project development, the hub, needle shaft and distal geometry should therefore be reviewed as an aligned assembly rather than as separate components.

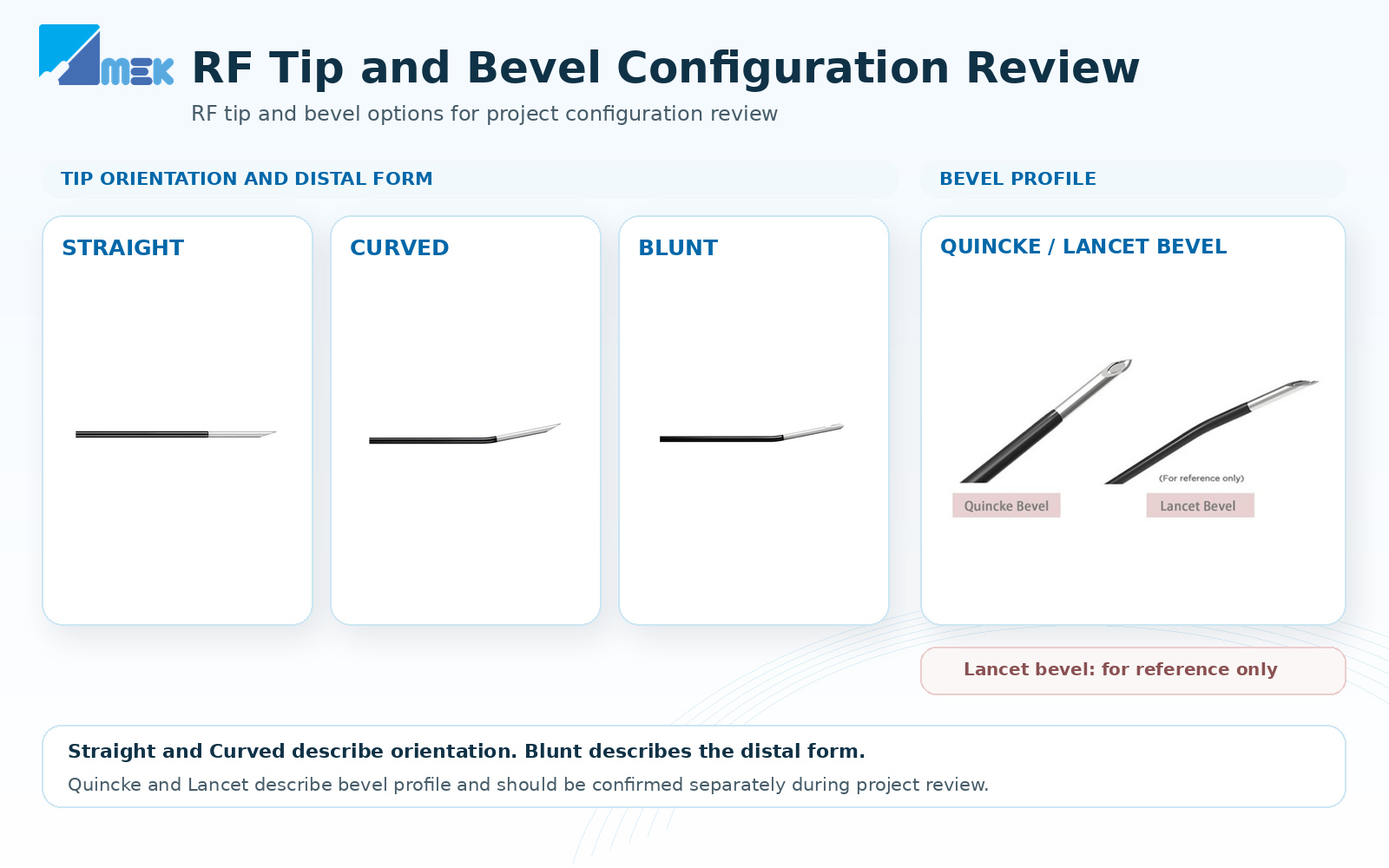

Straight curved and blunt RF needle tips with Quincke and Lancet bevel profiles
Tip orientation, distal form and bevel profile should be reviewed as separate configuration dimensions

05 Manufacturing Controls Behind Repeatable RF Cannulas

A finished RF cannula brings together needle-tube dimensions, straightness, tip grinding, active-tip exposure, insulation processing and hub assembly. Variation in one area can change the relationship between the distal tip, coating boundary and reference orientation.

Mekon’s medical-needle manufacturing capabilities support development from defined samples or drawings into controlled production requirements. Critical characteristics can be converted into inspection points for sample approval and later production batches.

Needle-tube controlOuter diameter, inner diameter, wall thickness, straightness and surface condition.
Tip grindingDistal geometry, bevel profile and curved or straight tip consistency.
Active-tip exposureLength and position of the exposed distal region relative to the tip.
Insulation processingCoverage, surface continuity and distal coating-boundary position.
Hub assemblyNeedle insertion, reference orientation and connection consistency.
Finished-product supportCleaning, packaging, sterilization and inspection planning for the selected configuration.

06 OEM and ODM Configuration for RF Needle Programs

RF needle projects often begin with an existing sample, drawing, electrode interface or target-system requirement. Instead of selecting a single specification in isolation, the complete configuration should be reviewed from the distal tip to the hub and packaging format.

Needle-level configuration

  • Gauge, working length and needle-tube dimensions
  • Active-tip length and insulation-boundary position
  • Straight or curved orientation with sharp or blunt distal-tip options
  • Lubricated or non-lubricated surface option
  • Echogenic or non-echogenic design, with Quincke or project-confirmed Lancet bevel options
  • Hub reference, color and compatible electrode interface

Program-level support

  • Development from customer drawing or reference sample
  • Prototype review and approved-sample transfer
  • Individual sterile packaging or project-specific supply format
  • Branding, labeling and packaging configuration
  • Quality, sterilization and destination-market document review

Mekon manufactures medical needles under an ISO 13485 quality management system. Applicable certificates and technical documentation should be confirmed according to the final RF needle configuration, compatible system and destination market.

Evaluating an RF needle or custom radiofrequency cannula project? The active tip, insulation coating, distal geometry, hub reference and system interface should be reviewed as one complete configuration. Detailed product options are available on the Radiofrequency Needle RF Cannula product page, together with Mekon’s related anaesthesia needle solutions.
