01OD, ID and Wall Thickness: The Core Relationship

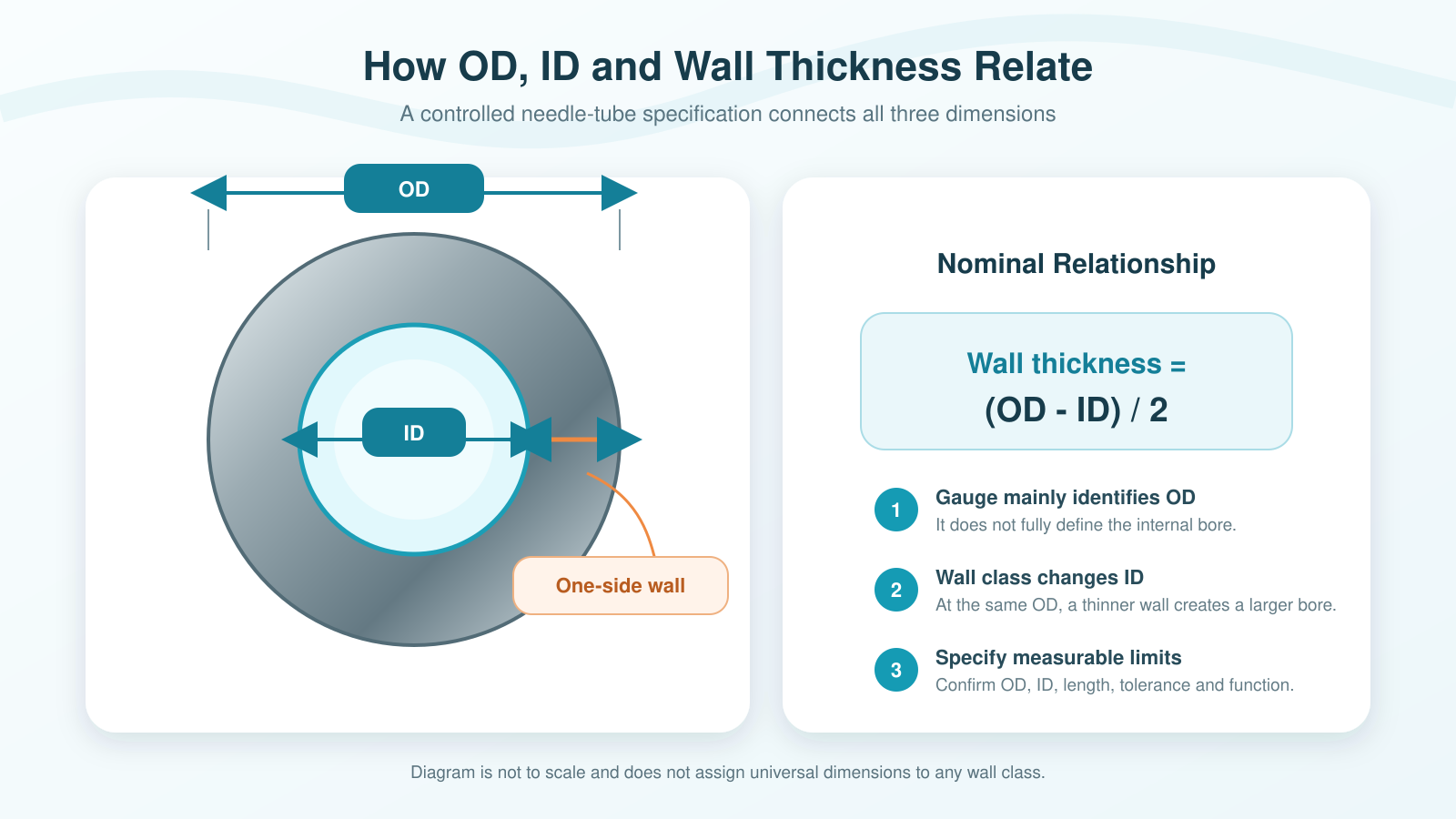

A needle tube is defined by three related dimensions: outside diameter (OD), inside diameter (ID) and wall thickness. If the tube is concentric and the values are expressed in the same unit, nominal wall thickness can be calculated as:
Gauge is mainly an outside-diameter designation. It does not fully define the internal bore. Two needles marked with the same gauge can therefore have different IDs if their wall classes differ. This distinction matters when the device needs a particular flow rate, aspiration response, priming behavior, pressure limit or interface with another component.
ISO 9626:2016 covers rigid stainless steel needle tubing for medical-device manufacture and specifies dimensions and mechanical properties across designated metric sizes. The standard applies to tubing as a component. Once that tube is incorporated into a finished needle, catheter introducer, biopsy device or delivery system, additional finished-device performance testing may still be required.
02What Do RW, TW, ETW and UTW Mean?

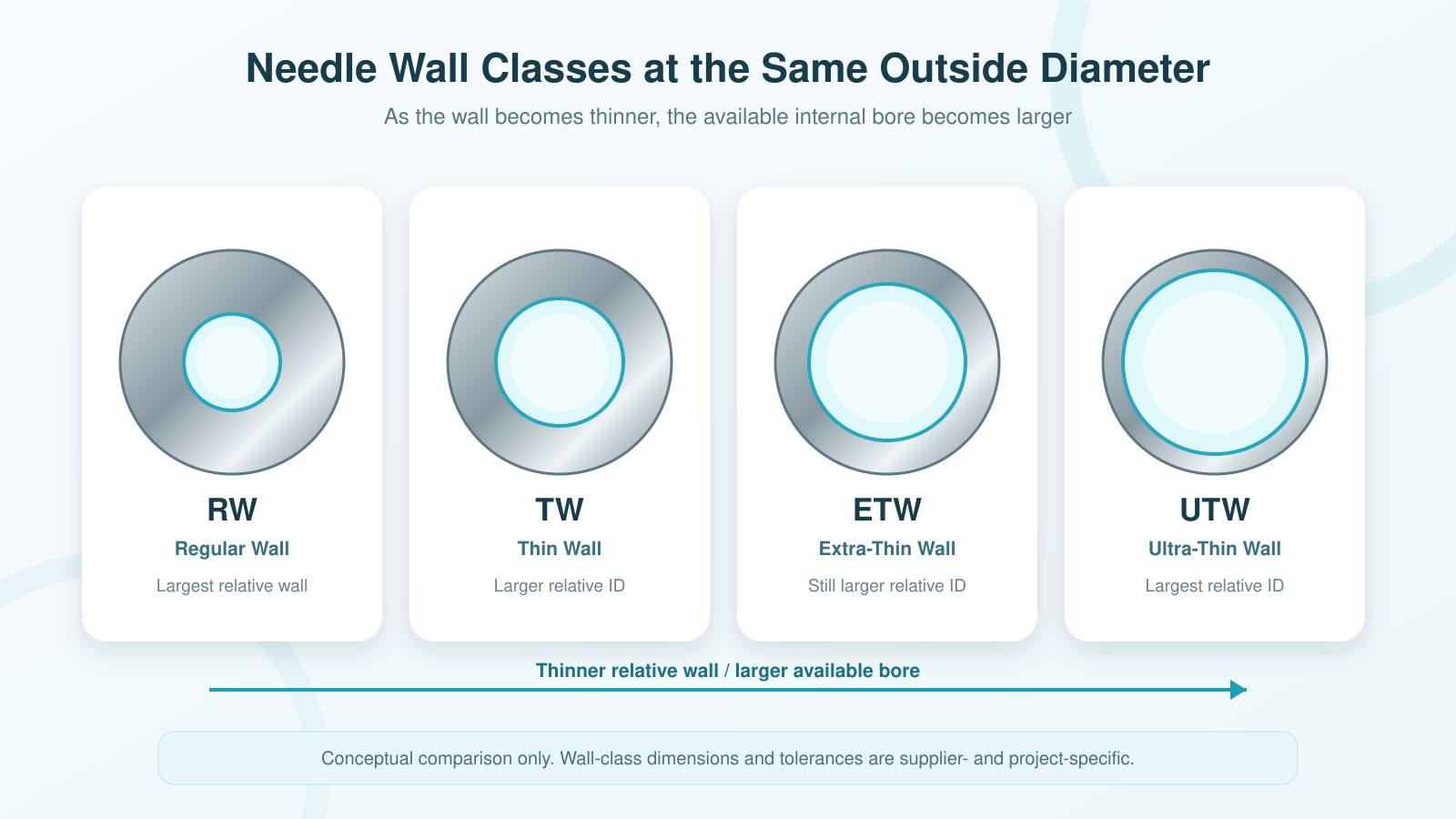

The four abbreviations describe a progression from more metal around the bore to less metal around a larger bore. They are useful selection categories, but they should not be treated as universal stand-alone dimensions. The actual ID associated with RW, TW, ETW or UTW depends on the nominal tube size, applicable standard, manufacturer capability and project drawing.
| Wall class | Relative bore at the same OD | Typical design reason | Engineering points to review |
|---|---|---|---|
| RW - Regular Wall | Smallest of the four relative IDs | Conventional construction where standard flow and a larger material section are acceptable. | Check whether the available bore is sufficient for the fluid, dose, aspiration or cycle-time requirement. |
| TW - Thin Wall | Larger than RW | Increase the internal pathway while retaining the selected outside-diameter category. | Confirm ID, flow and mechanical performance for the final length and assembly. |
| ETW - Extra Thin Wall | Larger than TW | Support a more demanding flow or aspiration target when OD cannot be increased. | Review wall uniformity, stiffness, resistance to damage and process capability more closely. |
| UTW - Ultra Thin Wall | Largest of the four relative IDs | Maximize the bore within a tightly limited OD for a qualified application. | Requires project-specific confirmation of material, hardness, length, handling, tip process and finished-device validation. |
The terms indicate relative categories, not automatic quality levels. A well-controlled RW needle can be the correct design, while a poorly matched UTW needle can create unnecessary manufacturing or handling risk. Selection should begin with measurable device requirements rather than the most aggressive wall label.
03How Wall Thickness Affects Flow
When OD stays constant and the wall becomes thinner, ID increases. Under ideal laminar-flow conditions in a straight circular tube, the Hagen-Poiseuille relationship shows why even a modest bore increase can matter: flow is proportional to the fourth power of the internal radius when pressure difference, viscosity and tube length remain constant.
This relationship is useful for understanding direction, not for promising the performance of a finished needle. Real devices include a bevel opening, hub transition, adhesive region, syringe outlet or connector, and sometimes side ports, filters or valves. Fluid viscosity may change with temperature or shear, and the operator or device may not apply a constant pressure. For that reason, actual flow or injection-force requirements should be verified on the complete configuration using the intended fluid or a justified test medium.
Viscous formulations
A larger ID may help reduce resistance, but viscosity, temperature, dose volume and allowable delivery time need to be tested together.
Aspiration applications
A larger bore can support sample or tissue movement, while tip opening, side-port geometry and hub restriction may still govern performance.
Long cannulas
Flow resistance increases with fluid-path length, so a long needle may benefit from a larger ID but also requires careful mechanical review.
04Flow Is Not the Only Trade-Off
Increasing ID at a fixed OD removes metal from the tube wall. That makes material properties and tube processing more important, especially as gauge becomes finer or effective length increases. The relevant question is not whether thin wall is "strong" or "weak" in isolation. It is whether the selected tube maintains adequate performance throughout manufacturing, assembly, packaging, transport and intended use.
For example, a short fine-gauge pen needle and a long interventional cannula may have similar wall-selection goals but very different mechanical risks. The short needle has a limited unsupported length; the long cannula may need to pass through an assembly, resist handling damage or maintain straightness over a much greater distance. The same wall label should not be transferred between those programs without dimensional and performance review.
05Which Wall Class Fits Which Application?
The table below is a starting framework for engineering discussion. It is not a clinical recommendation and does not replace application-specific risk management, verification or regulatory review.
| Project condition | Wall direction to evaluate | Why it may help | What must still be confirmed |
|---|---|---|---|
| Standard injection or aspiration with adequate flow | Begin with RW or established TW | A conventional specification may meet performance with a broad manufacturing margin. | Finished flow, penetration, connection, sterility and packaging requirements. |
| Need to increase flow without increasing OD | Compare TW, ETW and project-qualified UTW | A larger ID can reduce internal flow resistance at the selected external profile. | Exact ID, length, fluid viscosity, applied pressure and mechanical performance. |
| Fine-gauge drug delivery | Evaluate the thinnest qualified wall that meets device needs | May preserve a useful bore at a small outside diameter. | Injection force, dose time, tip integrity, compatibility and applicable device standard. |
| Biopsy or aspiration needle | Often compare TW or ETW with the established design | A larger internal pathway may support aspiration or specimen passage. | Stylet fit, tip geometry, sample quality, bending, echogenic features and hub transition. |
| Long custom cannula | Do not select by flow alone | A larger bore may help offset length-related resistance. | Straightness, column behavior, handling, material condition, assembly and transport protection. |
| Side-hole or closed-end cannula | Project-specific wall selection | Wall and ID affect the material available around the port and the internal pathway. | Hole position, edge quality, burst or deformation risk, distal forming and flow distribution. |
06How to Specify Needle Wall Thickness Correctly
A purchase description such as "23G thin wall needle" may be enough to begin a conversation, but it is not always enough to control an OEM product. The drawing or approved specification should convert the wall-selection intent into measurable requirements.
If only a reference sample is available, the supplier should measure the sample and document which features are confirmed, inferred or still open. Reverse engineering a wall class from one cut sample can be misleading if the tube is eccentric, deformed by cutting or not representative of the production distribution. Multiple measurements and agreed measurement methods give a more reliable baseline.
07Manufacturing and Quality Controls
Thin-wall performance begins with tubing manufacture and continues through every downstream process. Drawing controls need to maintain OD, ID, concentricity and surface condition. Cutting, grinding, hole making, forming, cleaning and assembly must then preserve the tube rather than introducing burrs, dents, blocked bores or unintended deformation.
| Control area | What is reviewed | Why it matters for thinner walls | Possible evidence |
|---|---|---|---|

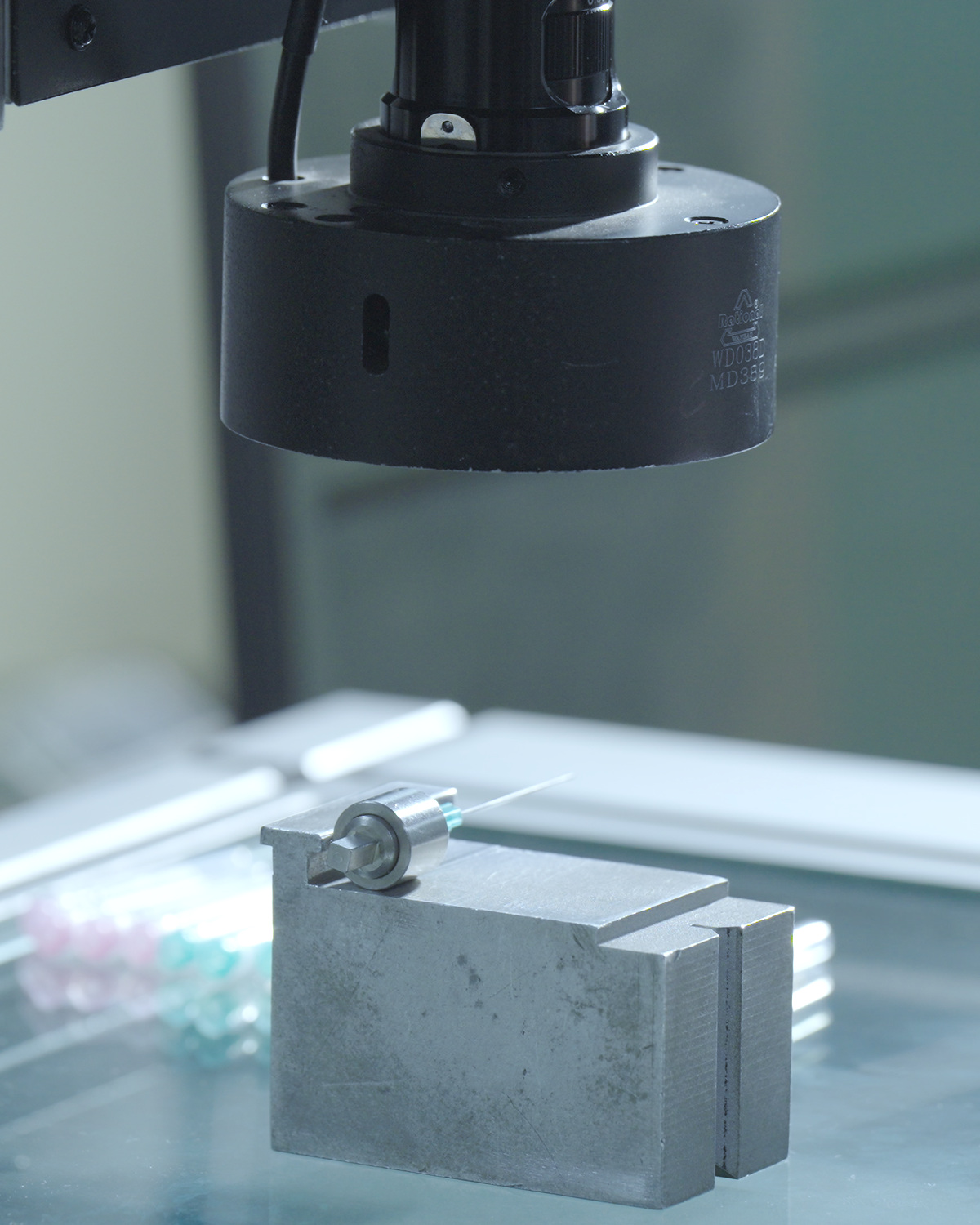

| Tube dimensions | OD, ID, wall thickness or concentricity, length and straightness. | Small dimensional shifts can consume more of the available wall or bore margin. | Dimensional report, calibrated optical or contact measurement and capability data where agreed. |
| Mechanical properties | Stiffness, resistance to breakage and other applicable tube requirements. | Reduced wall section makes material condition and process consistency more important. | Applicable ISO 9626 test records and project-specific verification. |
| Distal processing | Bevel length, angle, point geometry, burrs, side-port edges and closed-end form. | Grinding or machining must not collapse, tear or obstruct the thin tube. | Vision inspection, dimensional sampling, microscopic review and approved visual criteria. |
| Surface and cleanliness | Internal and external surface condition, residues and process cleanliness. | Fine bores can be more sensitive to particles, residue or cleaning-process variation. | Cleaning records, appearance inspection and applicable chemical or particulate tests. |
| Assembly | Insertion depth, orientation, adhesive location, connection and bore continuity. | Excess adhesive or deformation can remove the flow advantage created by the larger ID. | In-process inspection, section review, leak or flow testing and assembly records. |
| Finished device | Flow, leakage, penetration, functional compatibility, packaging and sterility as applicable. | The tubing result must transfer into the complete device after all downstream processes. | Finished-product inspection and validation under the applicable device specification. |
For sterile hypodermic needles, ISO 7864:2016 addresses the finished single-use needle rather than the steel tube alone. Dental needles, pen needles and other specialized products may fall under different product-specific standards. The correct compliance plan therefore depends on both the tubing and the final device category.
08Mekon RW, TW, ETW and UTW OEM Options
Mekon separates standard finished-needle options from custom cannula development. Its published sterile hypodermic needle range lists regular-wall and thin-wall options, 14G to 34G sizes, regular lengths from 4 mm to 40 mm, Luer slip or Luer lock use, and long- or short-bevel configurations. Exact size combinations, packaging and market documentation should be confirmed for the requested product.
For custom needle tubing and cannulas, Mekon's published capability range includes RW, TW, ETW and UTW, with development from drawings or reference samples. Custom programs can also review material, OD, ID, length, hardness, surface finish, roughness, bevel geometry, marking, holes, notches and proximal-end processing. Availability is project-specific because not every wall class can be combined with every gauge, length, material and distal feature.
Finished hypodermic needles
Evaluate gauge, length, RW or TW, bevel, hub connection, sterile packaging and destination-market documentation as one product.
Custom cannula components
Develop OD, ID, wall class, length, tip, port, marking and end-forming requirements from a controlled drawing or approved sample.
OEM development pathway
Use feasibility review, prototypes, dimensional and functional evidence, approved samples and production control to transfer the design.
More details are available in Mekon's overview of custom needle and cannula capabilities. Project confirmation should always use the latest drawing, material specification and intended-use information.
09Buyer Checklist Before Requesting a Quote
A clear request helps the manufacturer evaluate feasibility and avoids comparing quotations based on different tube constructions. Include the following information where available:
If some values are not yet fixed, provide the current drawing, reference sample and required functional outcome. The supplier can then identify which inputs require confirmation before prototyping.
FAQNeedle Wall Thickness Questions
Is a thin-wall needle always better than a regular-wall needle?
No. Thin wall provides a larger ID at the same OD, which can support flow, but the correct design also depends on length, material, stiffness, tip processing, assembly and intended use. RW may be the more appropriate and economical choice when it already meets performance requirements.
Does the same gauge always have the same inner diameter?
No. Gauge primarily identifies an outside-diameter category. The ID changes with wall class and allowable manufacturing dimensions. State ID or wall class in addition to gauge when the internal pathway matters.
Are ETW and UTW values identical for every supplier?
Do not assume so. The label should be tied to a controlled dimensional table or drawing for the selected gauge and supplier. Confirm nominal and tolerance values before qualification or supplier transfer.
Will UTW automatically produce a specific flow-rate improvement?
No fixed percentage can be promised from the wall label alone. Actual flow depends on the resulting ID, length, fluid, pressure, tip opening, hub transition and the rest of the device. Test the finished configuration using an agreed method.
Which standard applies to stainless steel needle tubing?
ISO 9626 applies to rigid stainless steel needle tubing for medical-device manufacture. The finished device can also require a product-specific standard, such as ISO 7864 for sterile single-use hypodermic needles, depending on its category and intended use.
Can Mekon manufacture all four wall classes?
Mekon's published custom cannula capability includes RW, TW, ETW and UTW. Feasibility must be confirmed for the requested gauge, ID, length, material, tip features, order quantity and finished-device requirements. Its published standard hypodermic needle range specifically lists RW and TW.
