Chiba Biopsy Needle with Echogenic Tip: Ultrasound Visibility and OEM Options
When distal-tip visibility becomes part of needle design
A Chiba biopsy needle with echogenic tip is a manually controlled fine needle used for fine-needle aspiration biopsy and selected image-guided procedures, depending on the final product configuration. Its performance depends on more than gauge and length: tip geometry, echogenic marking, stylet fit, cannula wall, shaft markings and hub identification all need to work as one system.
What Is a Chiba Biopsy Needle?
A Chiba needle is a manually controlled fine needle commonly considered for aspiration biopsy and selected image-guided procedures. Unlike an automatic or semi-automatic core biopsy device, it does not rely on a firing mechanism or a sampling notch. The clinician controls insertion and aspiration through the needle and connected syringe or system.

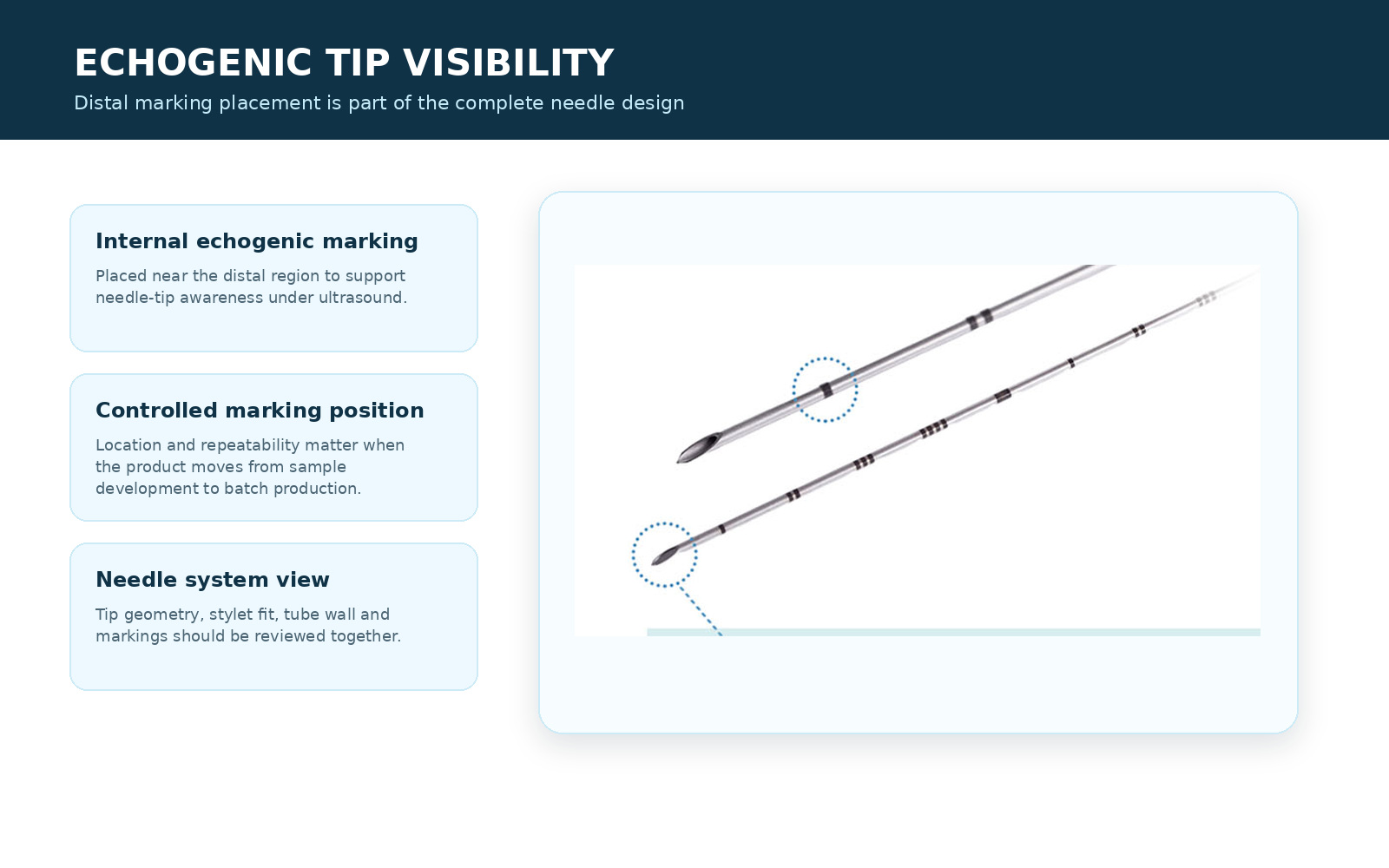

Why Echogenic Tip Visibility Matters
During ultrasound-guided procedures, the distal part of a smooth needle may be more difficult to recognize at some insertion angles. An echogenic feature near the tip is designed to enhance ultrasound reflection from the distal region, helping make the needle tip easier to identify during image-guided placement.
Visibility is not determined by the presence of a marker alone. The position, length, surface pattern and consistency of the echogenic region should be controlled together with the tip profile. For an OEM program, these details need to remain repeatable from development samples to routine production.

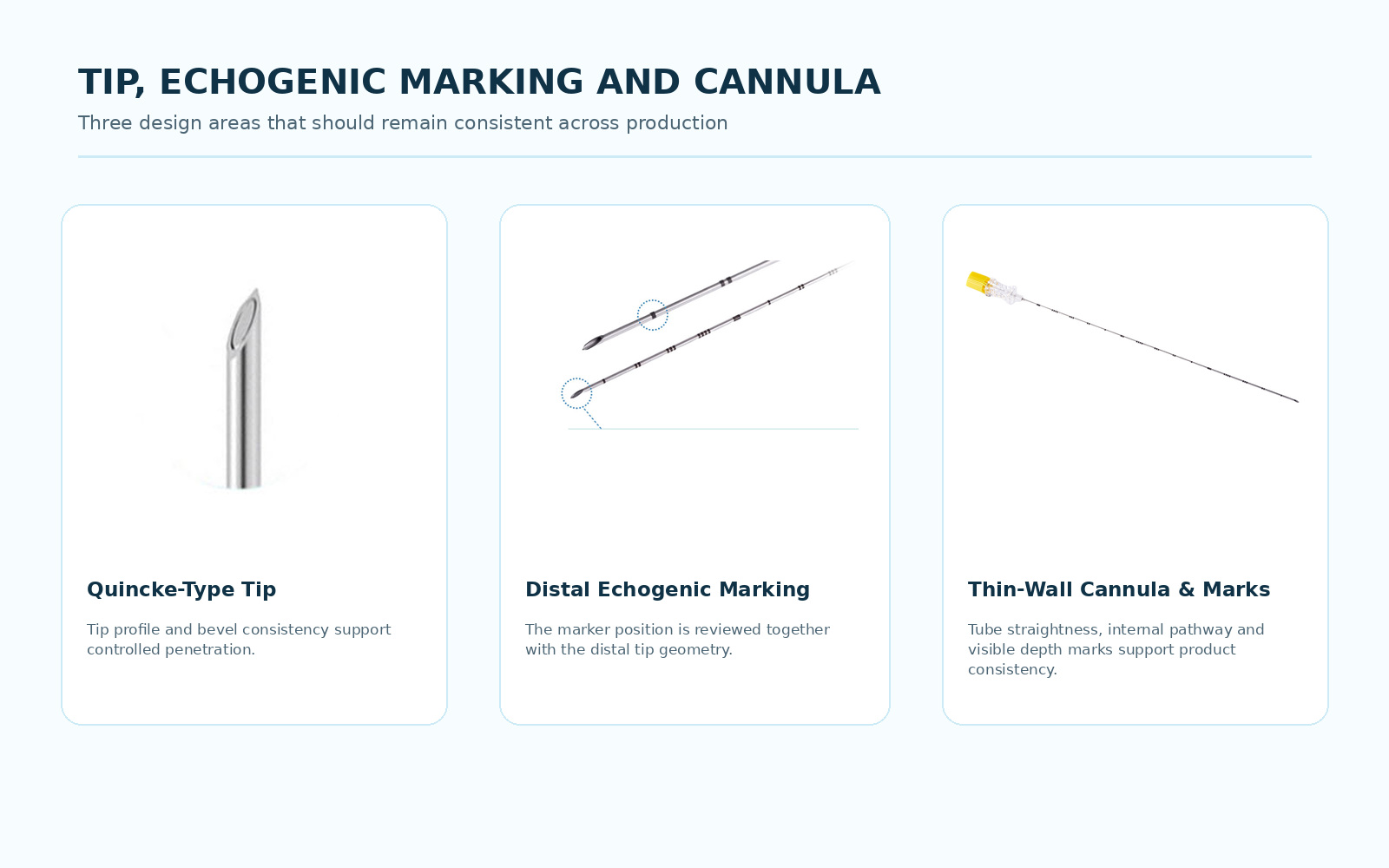

Quincke-Type Tip, Stylet and Thin-Wall Cannula
The needle tip establishes the initial puncture path, while the stylet closes the opening during insertion. A precision-matched stylet helps maintain the intended tip profile and may help reduce tissue coring before aspiration begins.
The cannula wall is also important. A thin-wall construction can provide a larger internal pathway while maintaining the selected outer diameter. Tube inner diameter, wall thickness, straightness and surface condition influence aspiration flow as well as the consistency of the finished needle.
Depth Markings and Color-Coded Hub Identification
Centimeter markings provide a visible reference for insertion depth, while color-coded hubs help distinguish needle sizes within a product line. These features appear simple, but the location, clarity and adhesion of the markings need to remain stable after assembly, packaging and sterilization.
For private-label or market-specific projects, hub color, printed information and product presentation can be reviewed together rather than treated as separate cosmetic details.
How Mekon Controls Manufacturing Consistency
Chiba needle performance depends on repeatable control across several connected manufacturing steps. Mekon combines needle-tube processing, tip grinding, stylet matching, echogenic-feature processing, shaft marking, hub assembly, cleaning, packaging, sterilization and finished-product inspection support.
OEM / ODM Configuration for Chiba Needle Programs
Needle-level configuration
- Tip profile and stylet arrangement
- Needle-tube dimensions and wall type
- Echogenic marking position or pattern
- Depth-mark layout and hub color
Program-level support
- OEM branding and private-label presentation
- Individual sterile packaging or project-specific supply format
- Sample development and production transfer
- Quality, packaging and sterilization documentation review
Mekon can review the Chiba needle together with the customer’s syringe, aspiration workflow, packaging concept and target-market requirements. Product and process details can then be transferred from prototype evaluation into repeat manufacturing under Mekon’s ISO 13485 quality management system.
Frequently Asked Questions
Mekon can review the tip, stylet, cannula wall, echogenic marking, depth marks, hub configuration, packaging and destination-market requirements as one complete OEM/ODM program.
