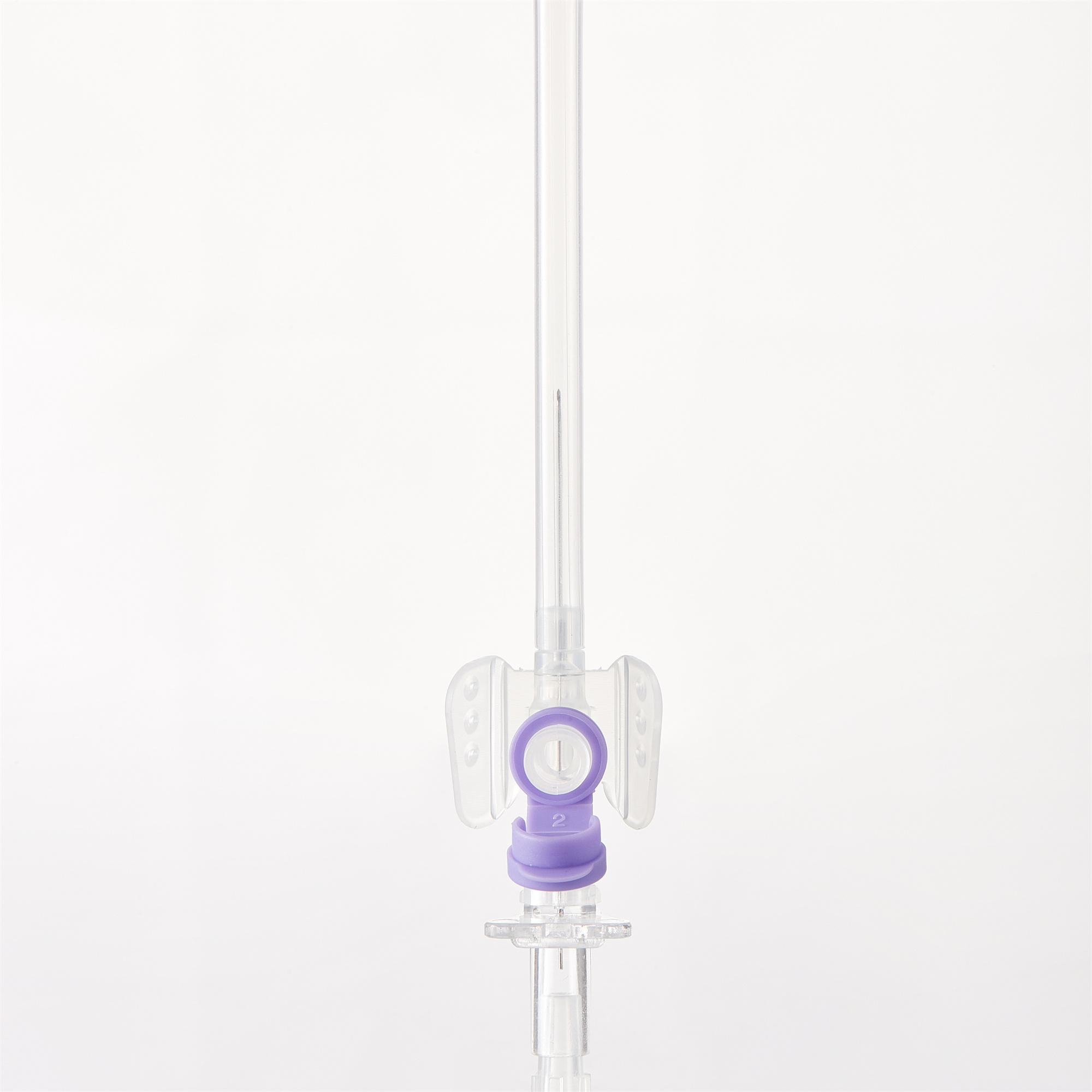

IV cannula with wings with injection port
Product Features
IV catheter with wings with injection port is a medical device used to gain access to a patient's vein for various purposes, such as administering fluids, medications, blood products, and drawing blood samples. The injection port is a crucial component that allows for the administration of medications directly into the bloodstream without the need for repeated needle sticks, thus minimizing patient discomfort and reducing the risk of infection.
●Smooth rotating three-way stopcock allows multiple simultaneous infusions.

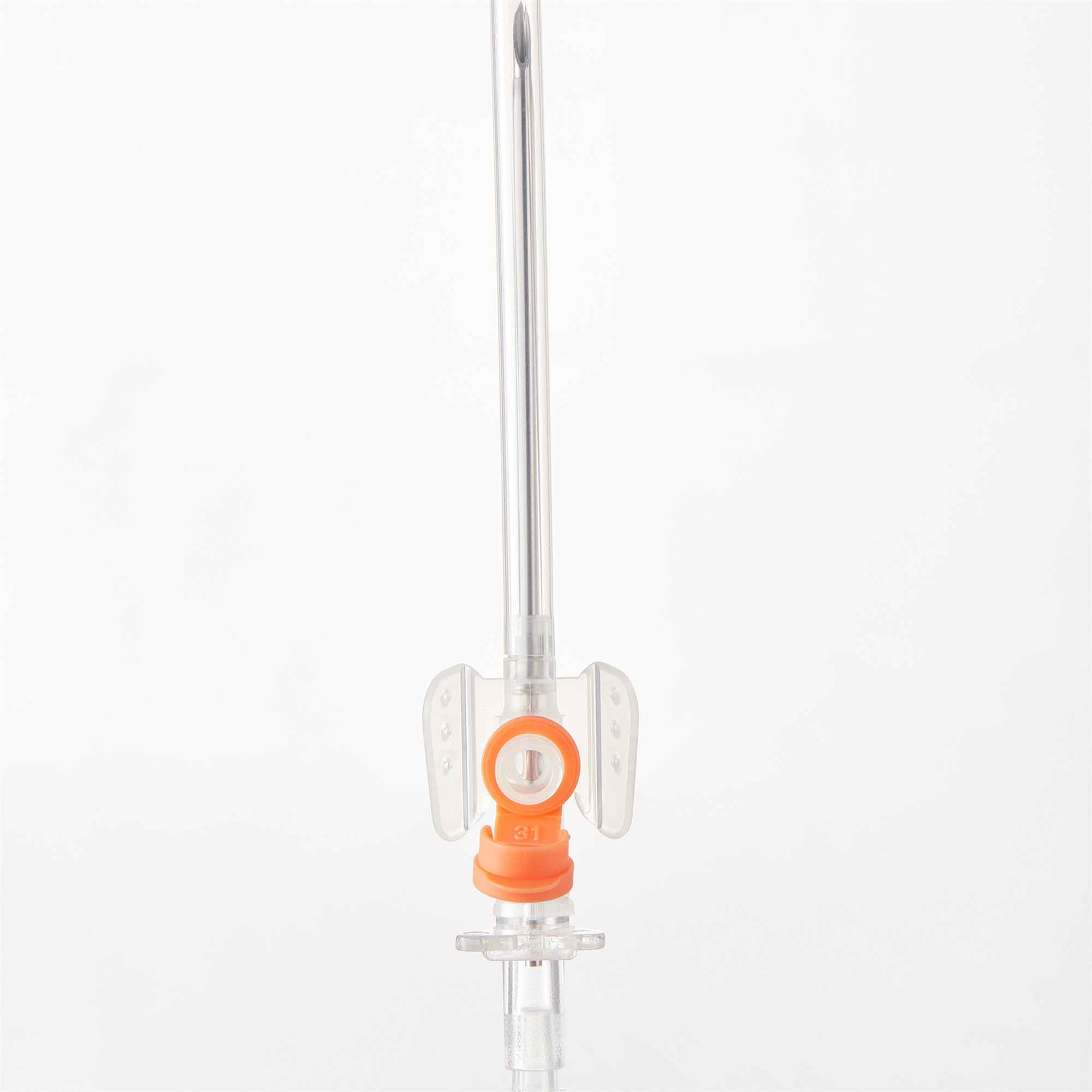

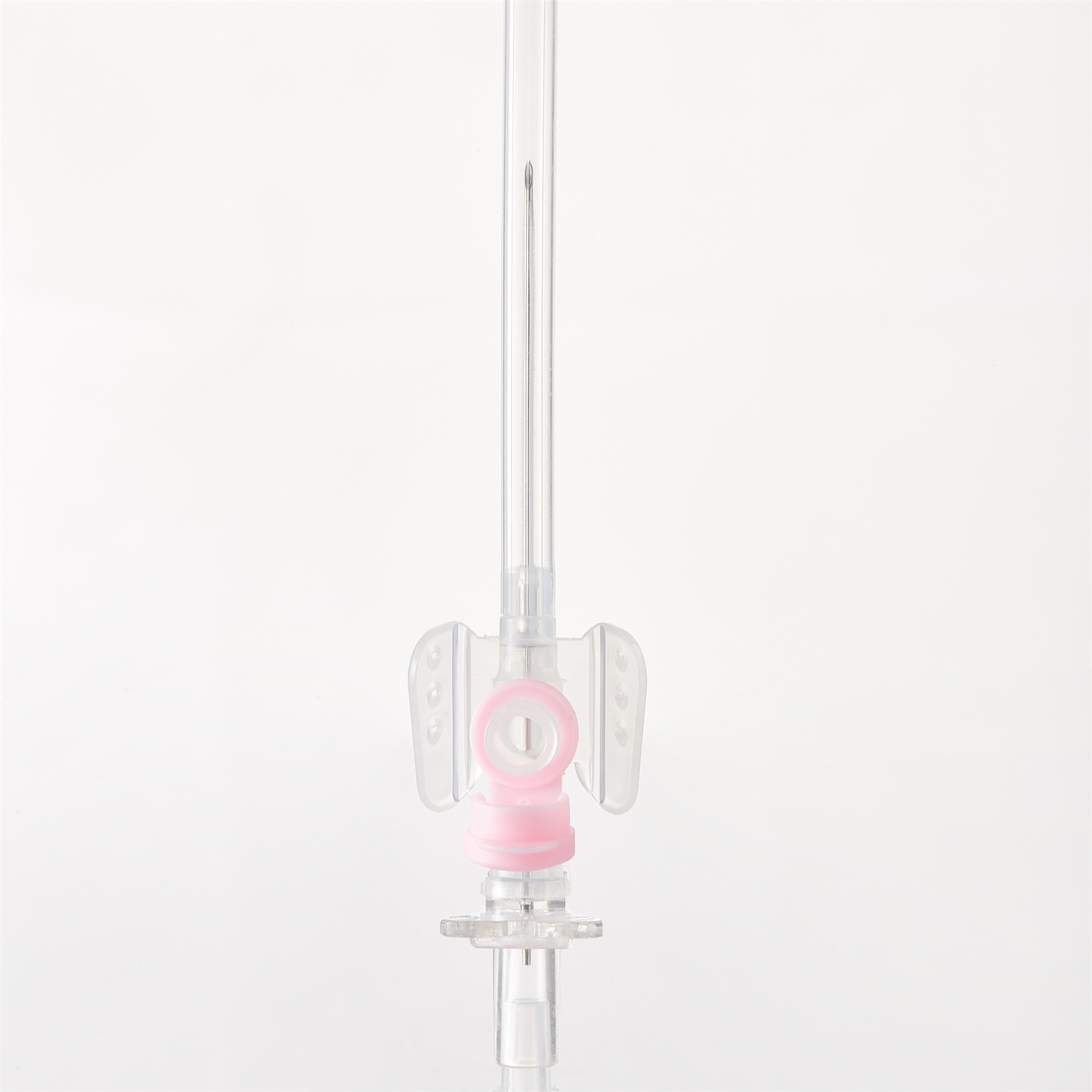

●Color coded according to catheter size.

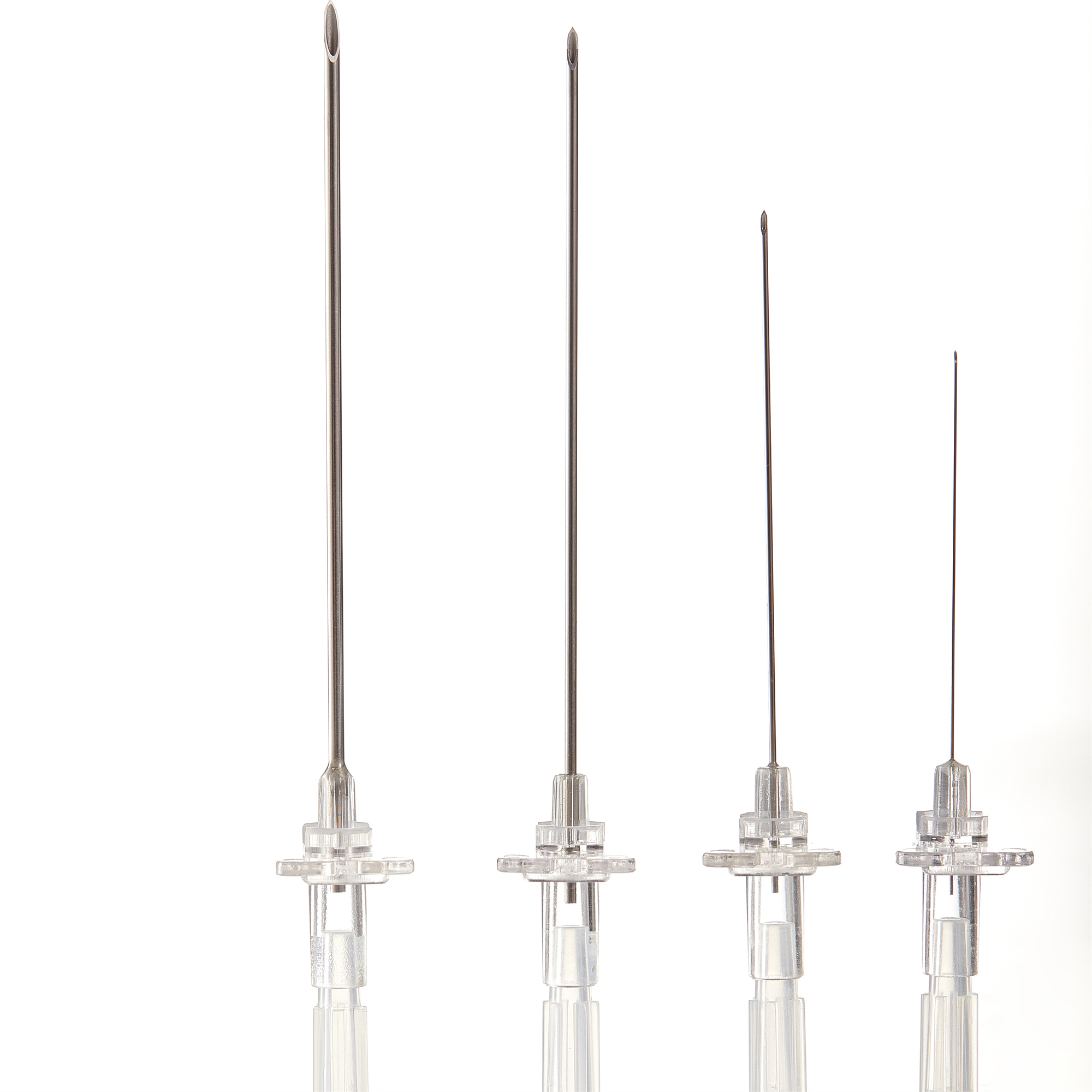

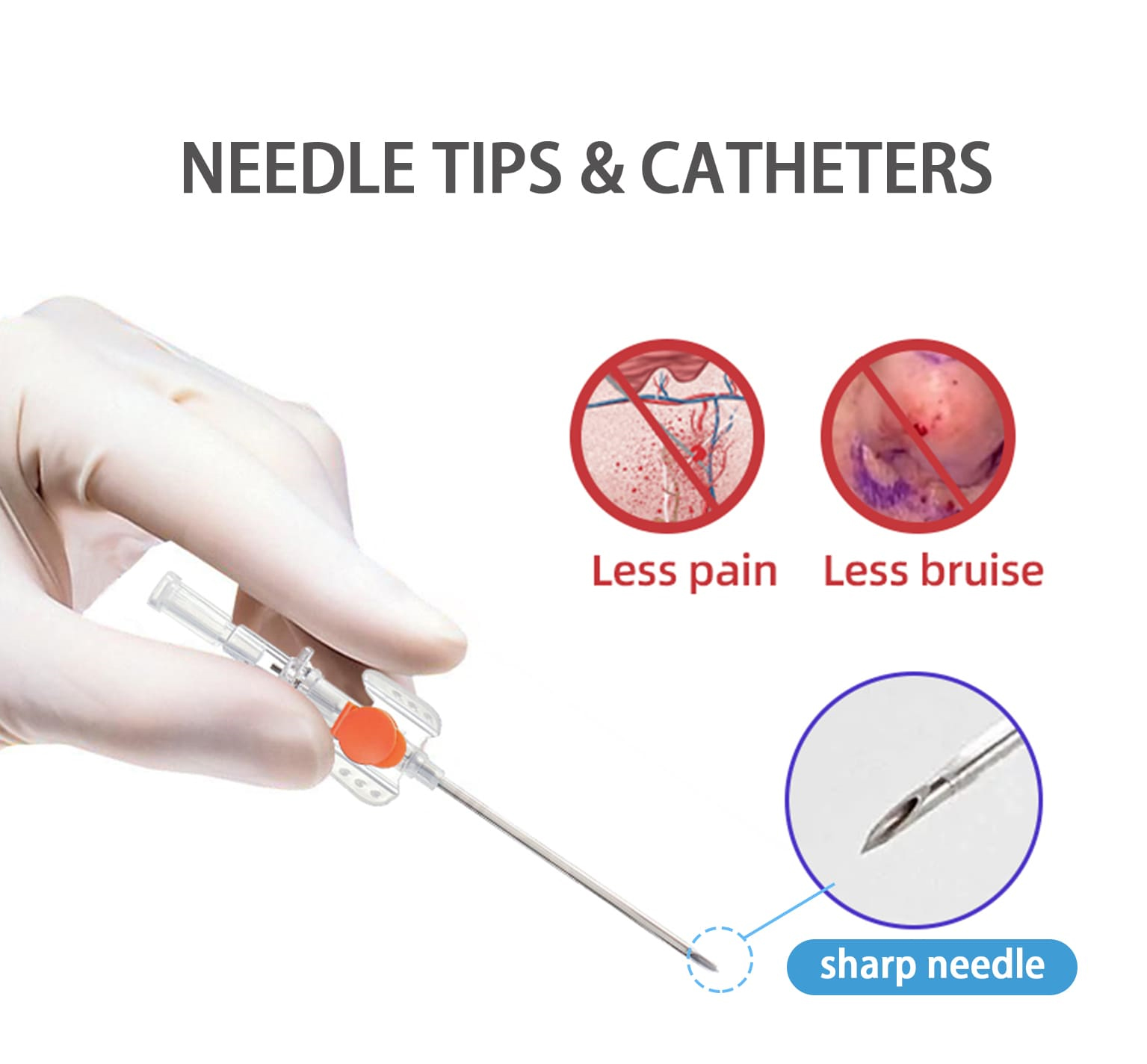

●Siliconized, ultra sharp, Stainless Steel, back-cut needle to perform easy and painless venipuncture.

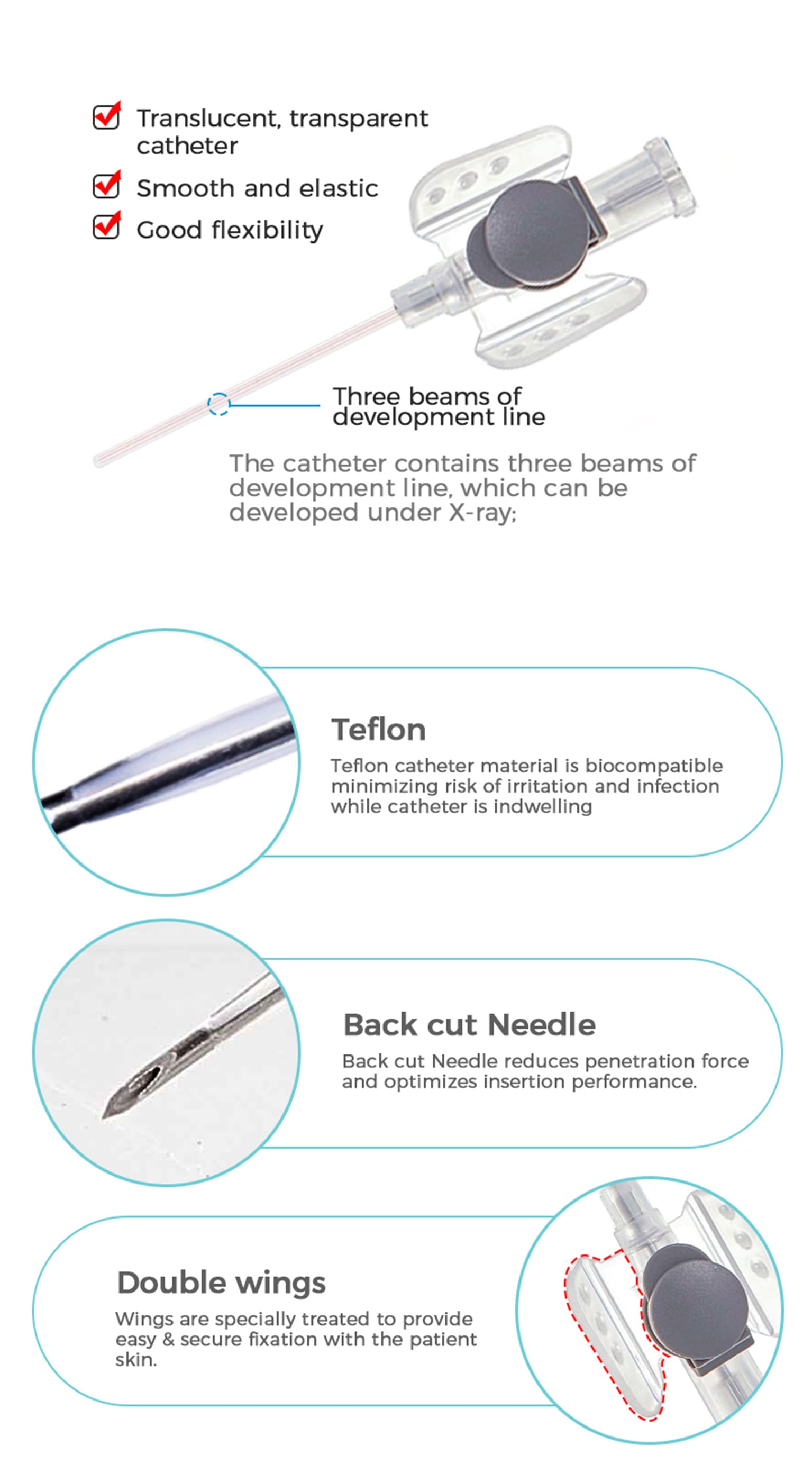

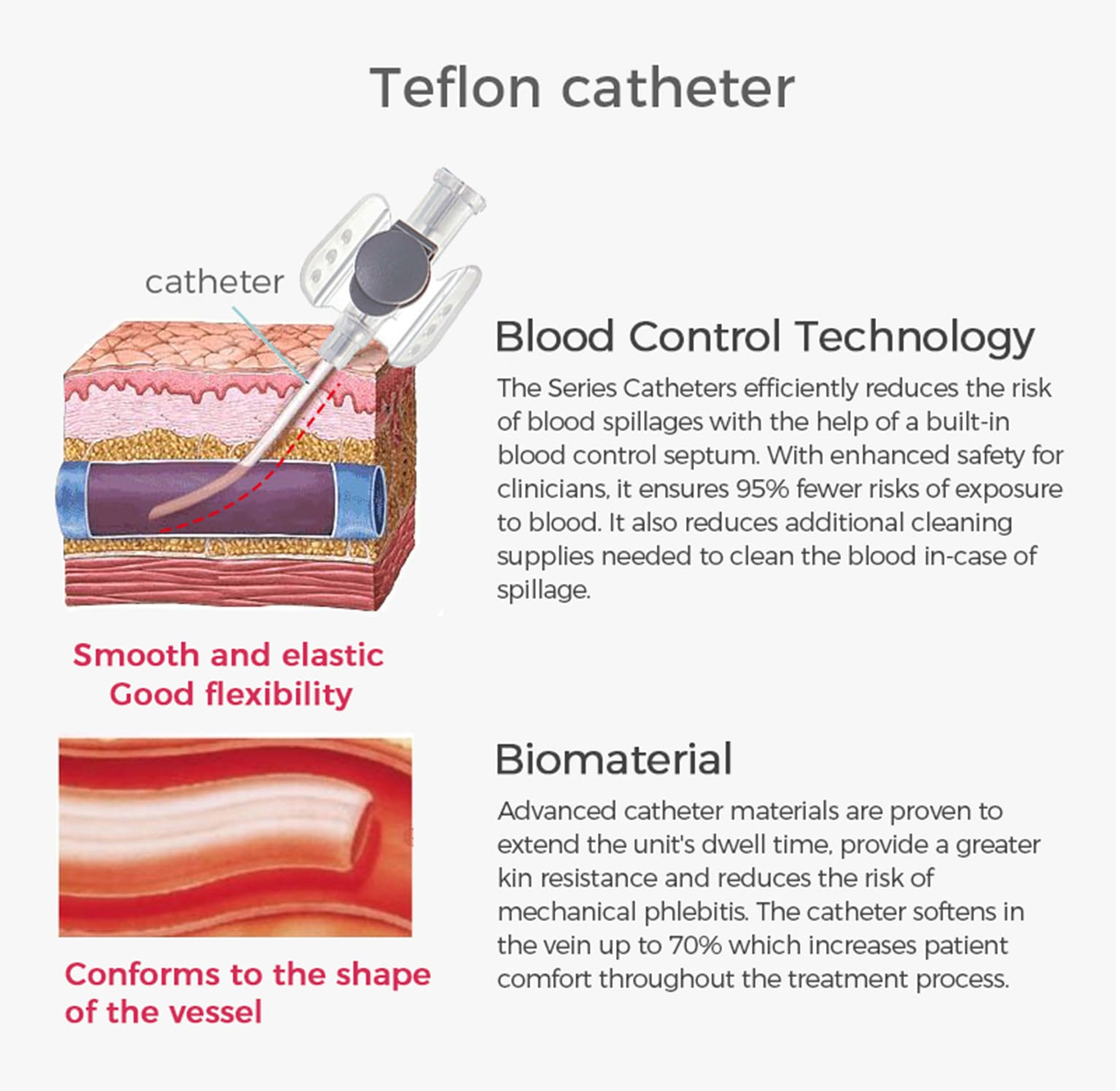

●Catheter available in FEP or PTFE material. Siliconized with proprietary technology ensuring smooth surface and minimal discomfort for both patient and clinician.

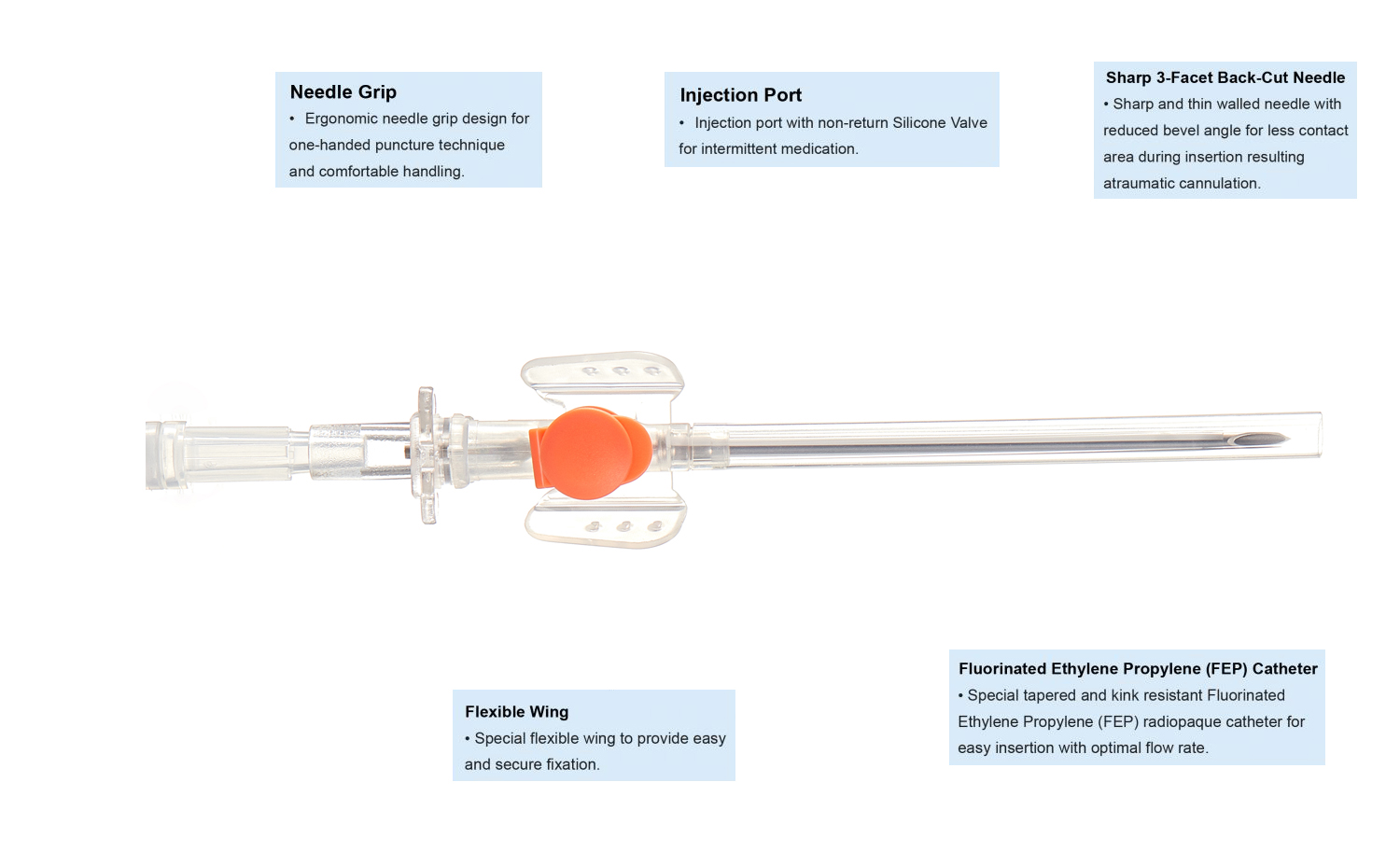

●Through the injection port it is possible to make injections at the same time as on-going fluid therapy.

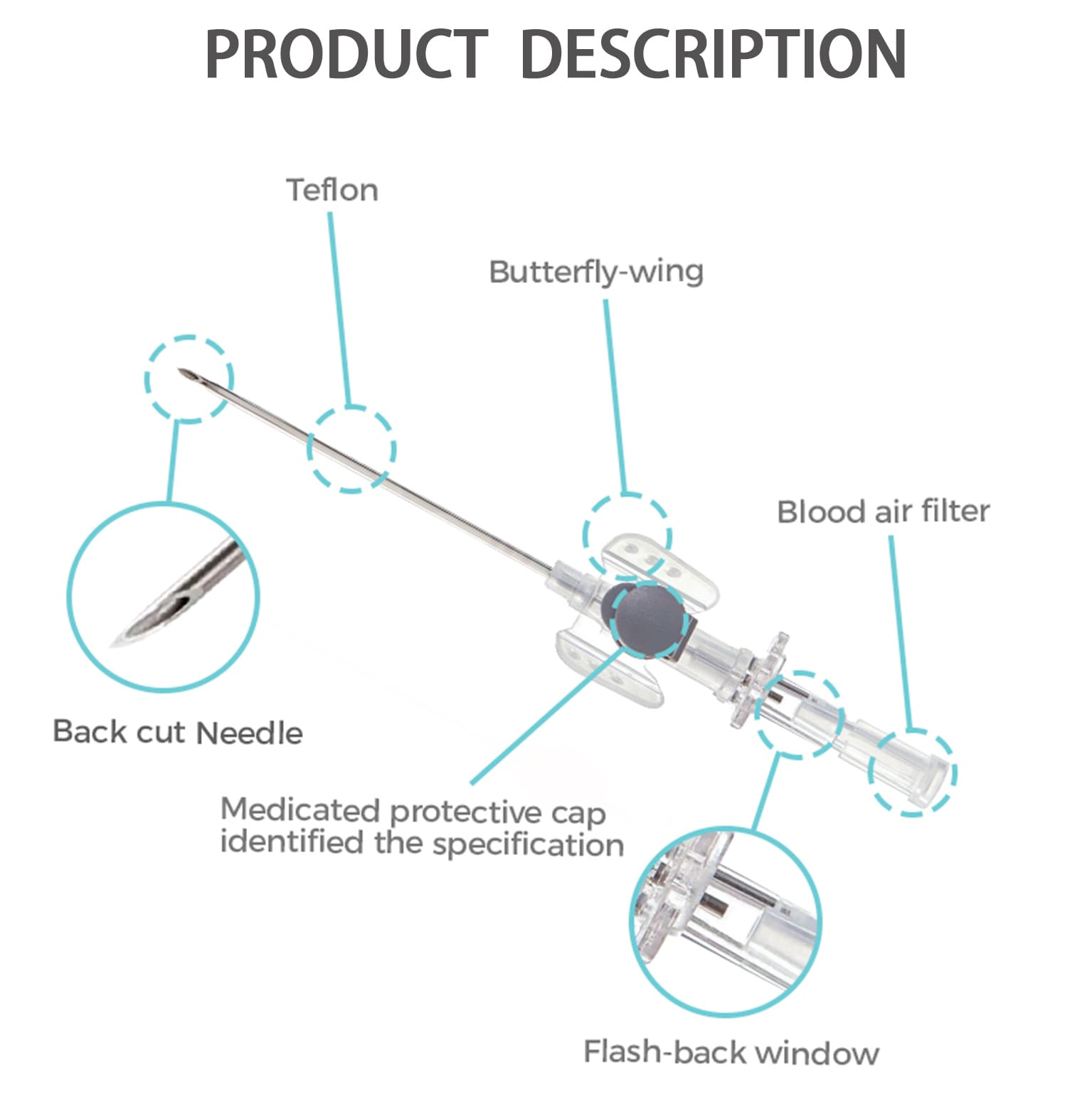

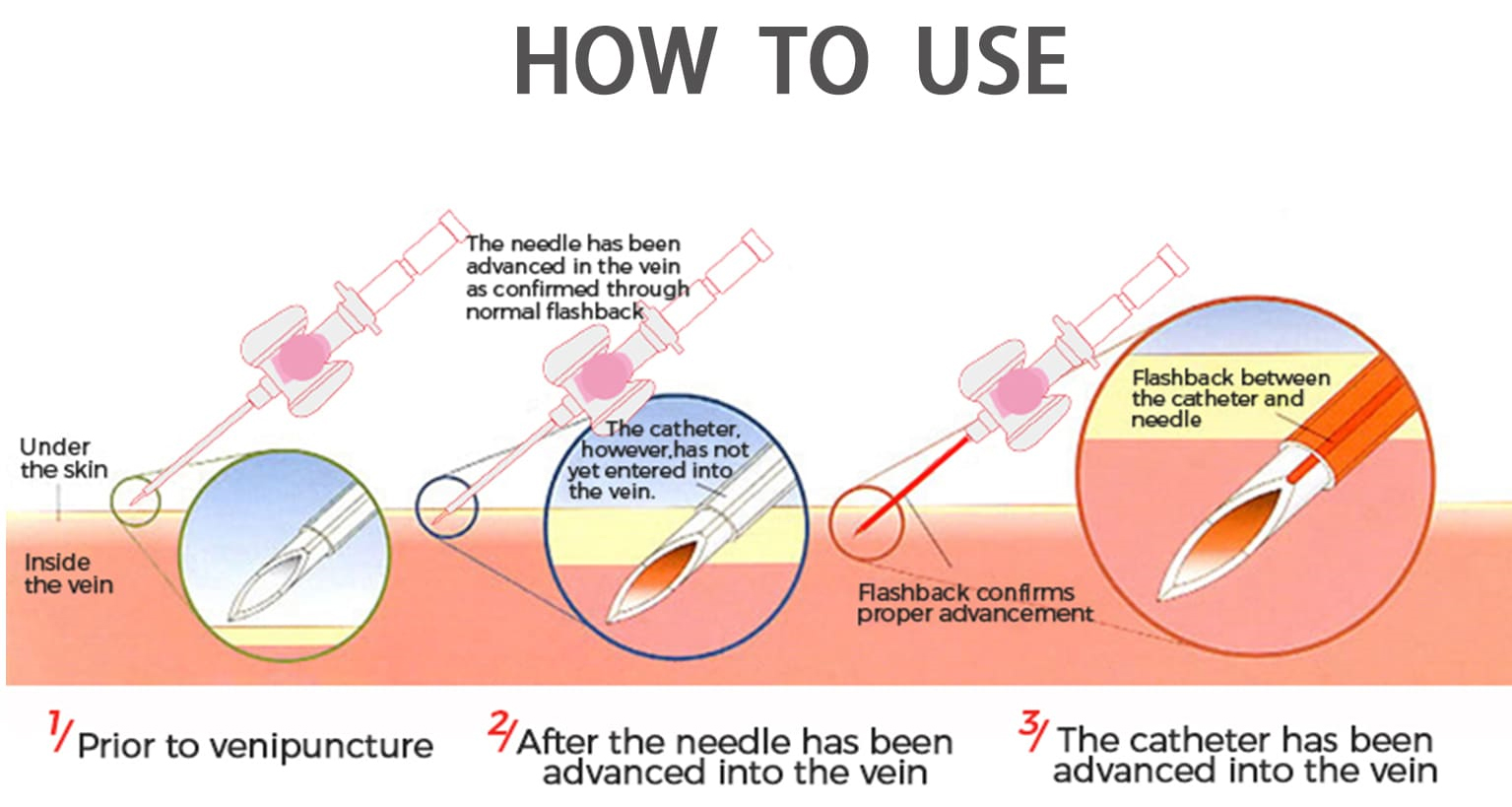

●Large flashback Chamber allows quick visualization for successful venipuncture.

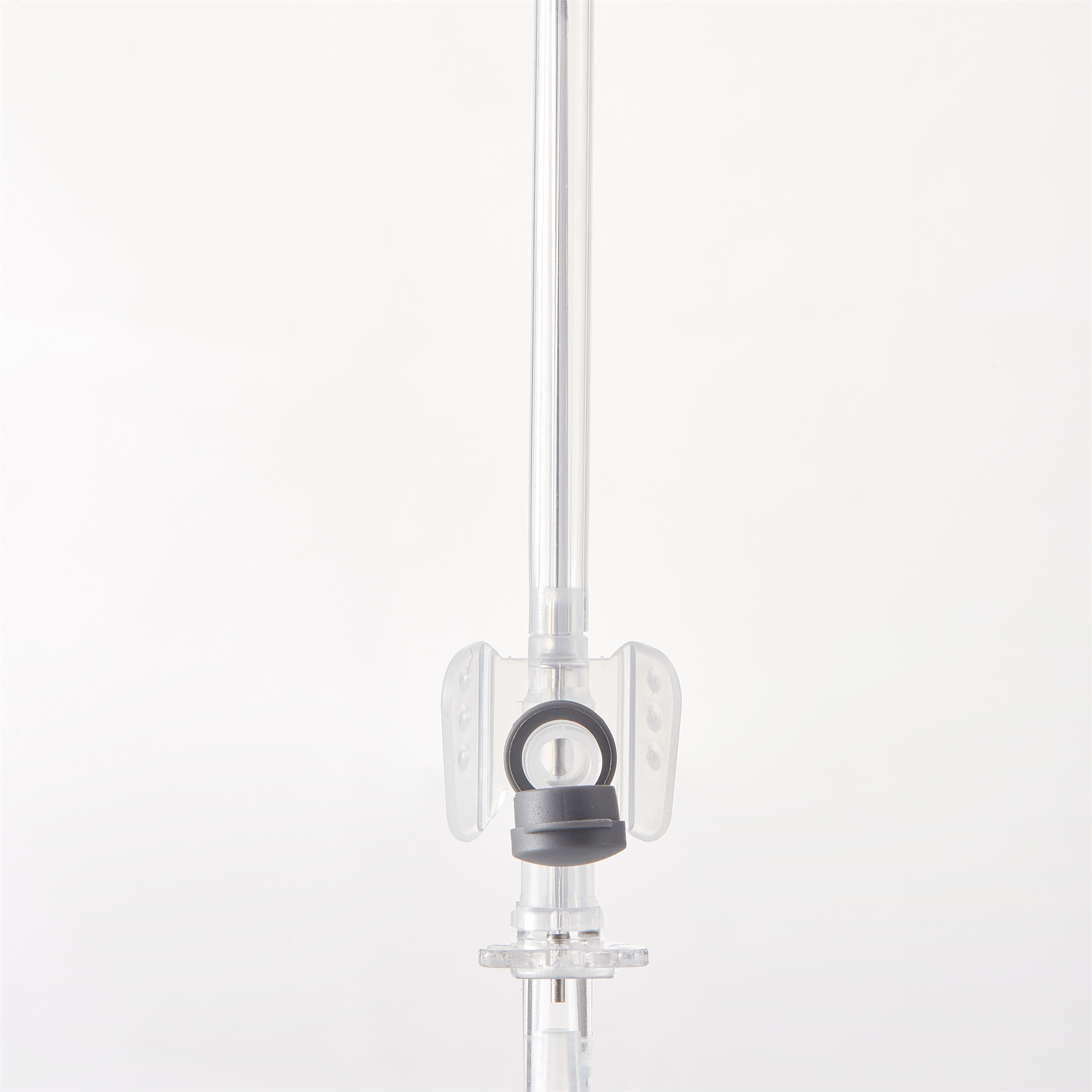

●The flexible wings provide easy gripping and follows the contours of site allowing more secure fixation.
●Transparent needle cover to prevent accidental damage to needle and catheter.
●Sterile, single use.
Product Specifications
|
OD |
GAUGE |
Color code |
General specifications |
Packing quantity |
|
0.6 |
26G |
purple |
26G×3/4" |
1000pcs/carton |
|
0.7 |
24G |
yellow |
24G×3/4" |
1000pcs/carton |
|
0.9 |
22G |
deep blue |
22G×1" |
1000pcs/carton |
|
1.1 |
20G |
pink |
20G×1 1/4" |
1000pcs/carton |
|
1.3 |
18G |
dark green |
18G×1 3/4" |
1000pcs/carton |
|
1.6 |
16G |
medium grey |
16G×2" |
1000pcs/carton |
Significance of the Injection Port:
●Efficient Medication Delivery:Enables quick and direct administration of medications into the bloodstream without interrupting the ongoing infusion.
●Reduced Patient Discomfort:Minimizes the need for multiple venipunctures, leading to a more comfortable experience, especially for patients requiring frequent medication doses.
●Decreased Risk of Infection:By reducing the number of skin punctures, the risk of introducing pathogens into the bloodstream is lowered.
●Precision and Accuracy:Allows for accurate delivery of medication doses directly into the circulatory system.
●Self-Sealing Mechanism:Prevents blood backflow and maintains the integrity of the IV system, further reducing the risk of infection and maintaining a closed system.
