Combined epidural and spinal anesthesia kit
Four configurations: AS-E, AS-S, AS-N, and AS-E/S II.

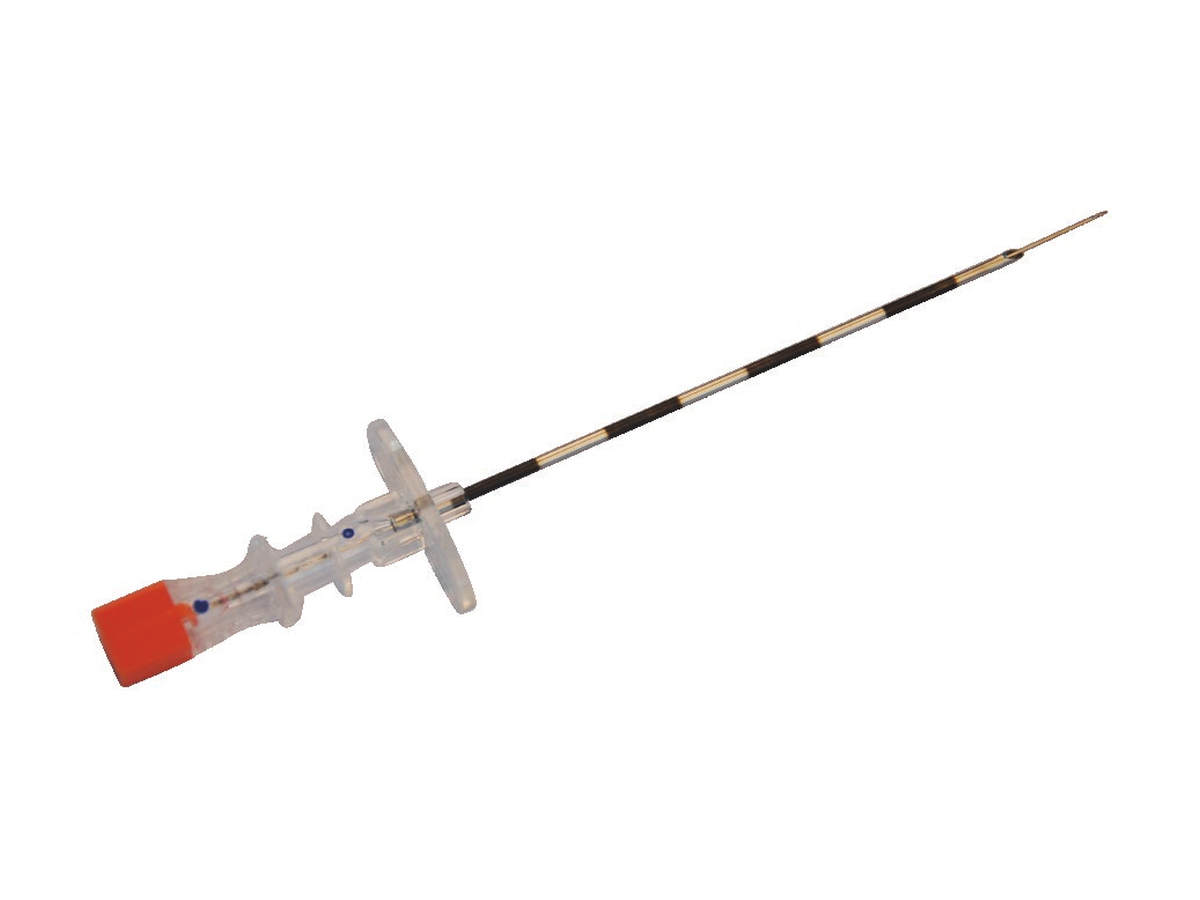

Needle options for epidural, spinal, nerve block, and combined procedures.
Optional anesthesia tube variants: Reinforced or Non-invasive.
OEM / ODM tray, packaging, labelling, and documentation support.
Product Specifications
| Product Name | Combined epidural and spinal anesthesia kit |
| Product Type | Single-use anesthesia puncture set |
| Scope of Application | It is suitable for puncture and injection of drugs during epidural anesthesia, lumbar anesthesia, nerve-blocking anesthesia, and combined epidural and lumbar anesthesia. |

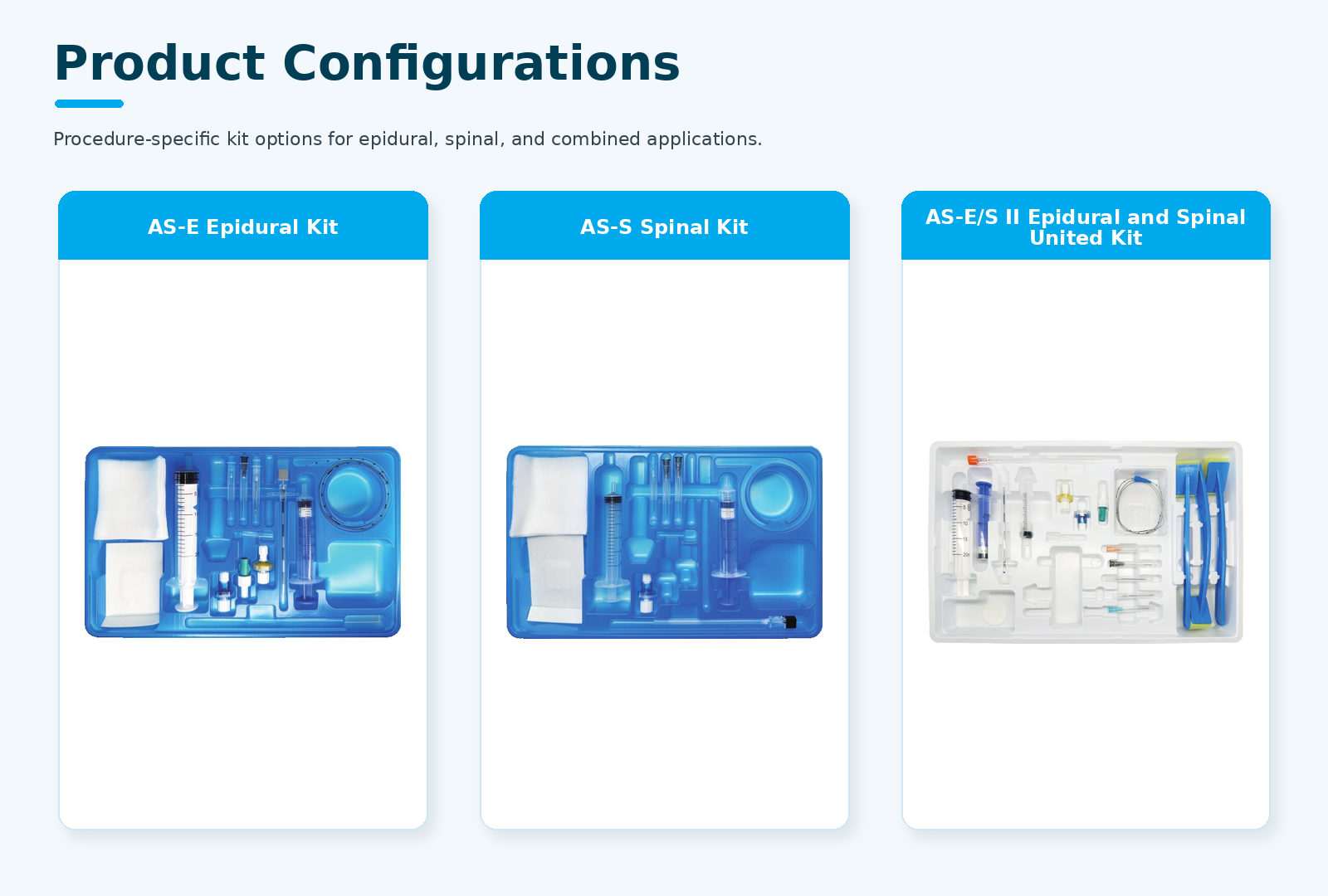

| Available Configurations | AS-E, AS-S, AS-N, AS-E/S II |

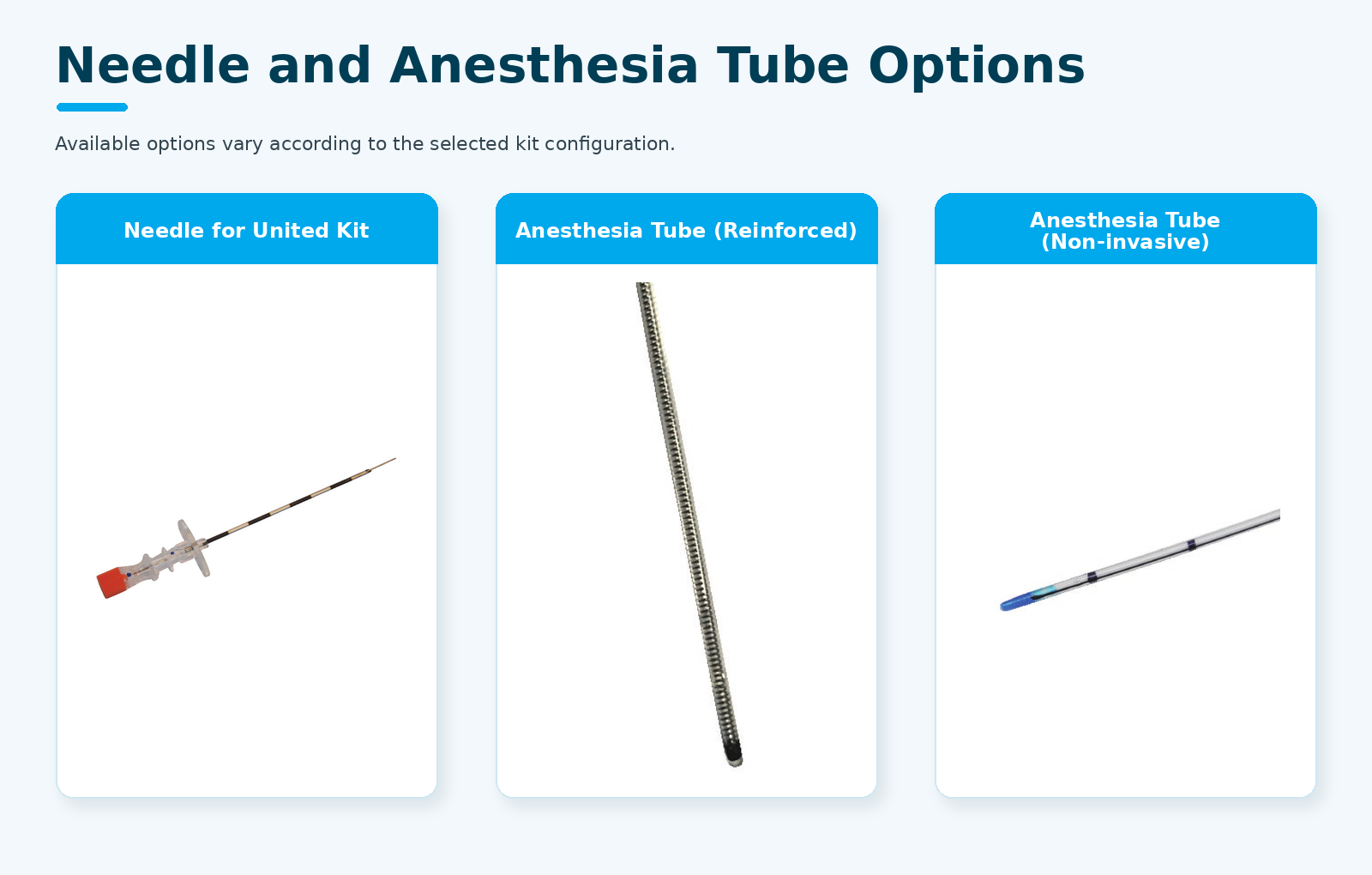

| Optional Anesthesia Tube Variants | Anesthesia Tube (Reinforced) or Anesthesia Tube (Non-invasive), available according to the selected configuration. |
| OEM / ODM | Component list, needle specification, anesthesia tube option, configuration tray, packaging, labelling, and project documentation can be reviewed according to customer requirements. |
Product Types
| Type | Name |
|---|---|

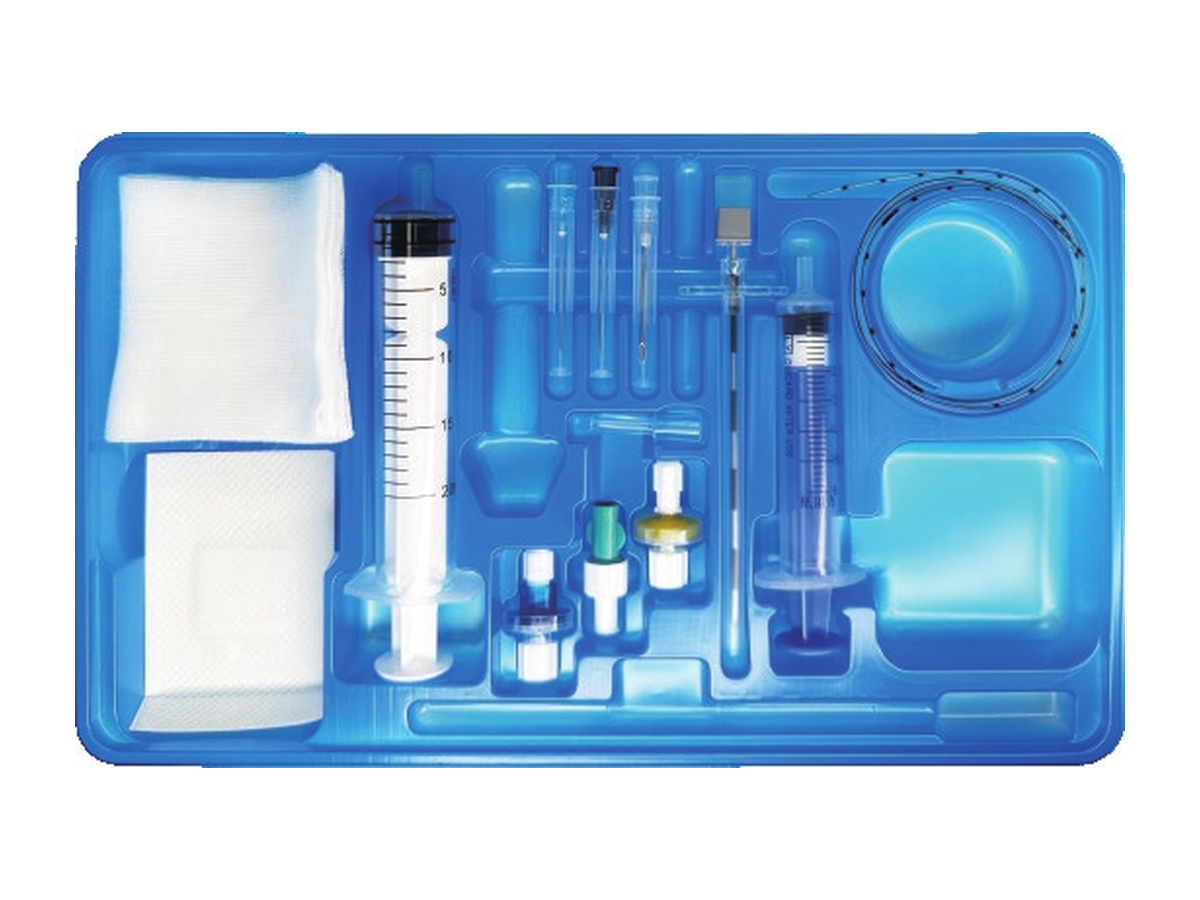

| AS-E | Epidural Kit |

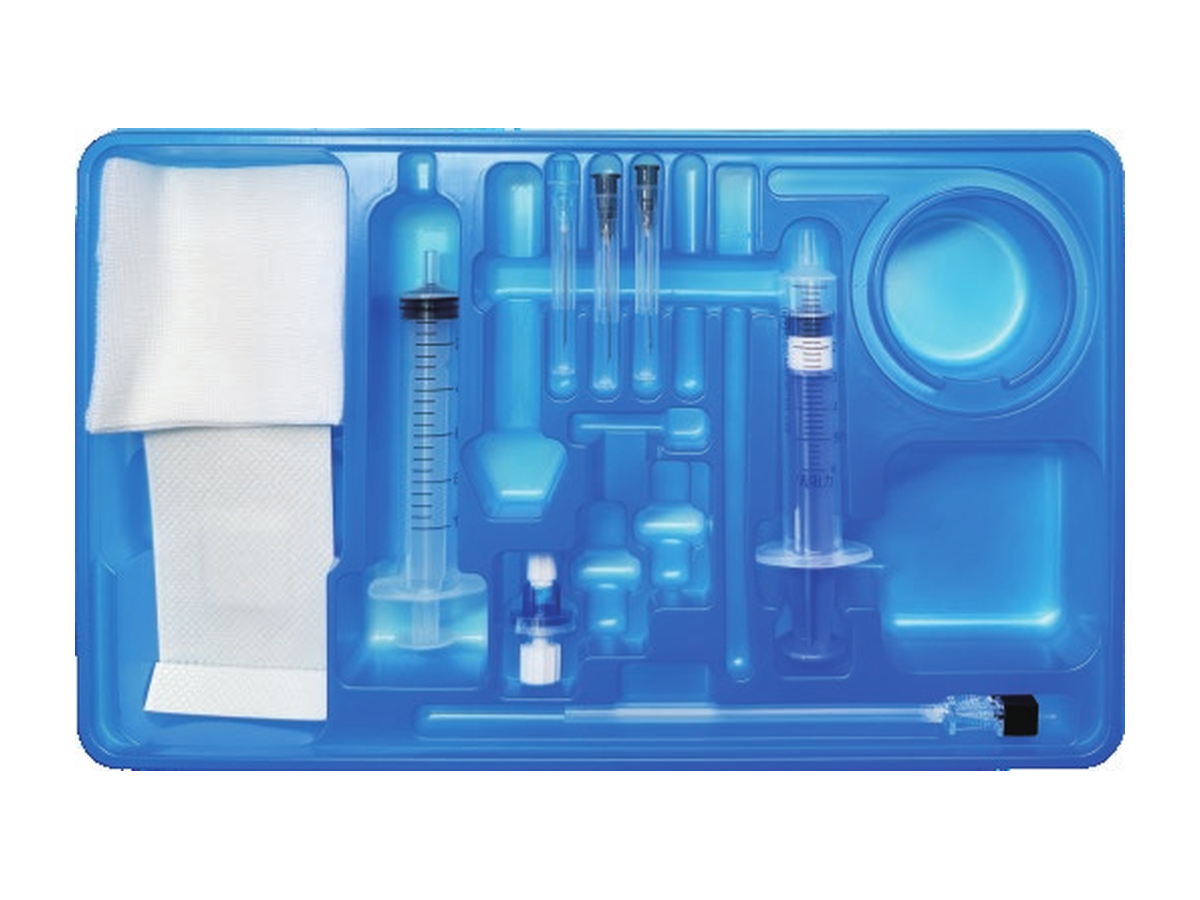

| AS-S | Spinal Kit |
| AS-N | Nerve Block Kit |

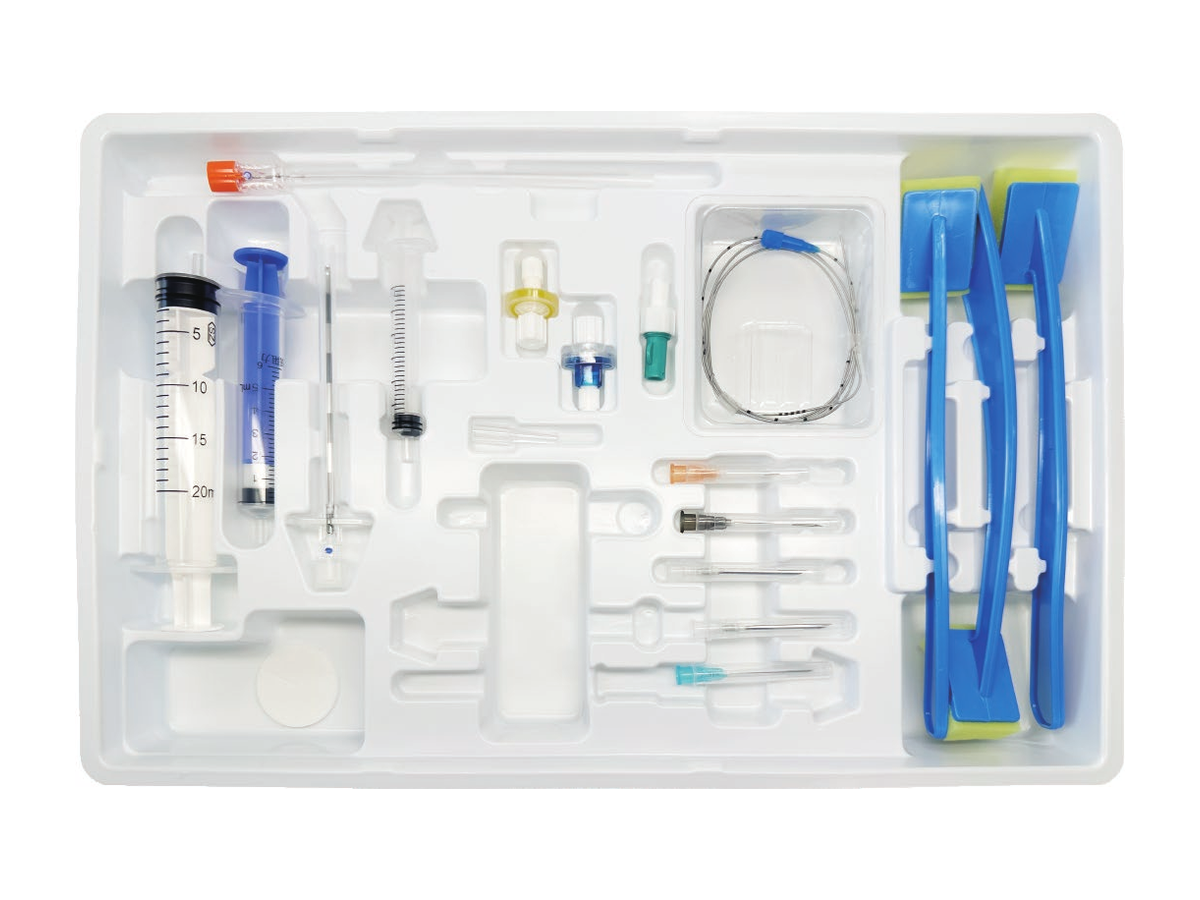

| AS-E/S II | Epidural and Spinal United Kit |
The formal product names and type codes above follow the supplied bilingual product manual. Final component combinations and quantities depend on the selected kit type and the approved product configuration.
Product Features
The kit configuration is controlled according to the approved product specification and applicable project requirements.
The configuration tray is precise in layout, reasonable in design, and convenient in use.
- 360° centimetre scale markings support visual depth reference.
- Radiopaque anesthesia tube options support visibility under X-ray imaging.
- Needle, anesthesia tube, accessory list, and tray layout can be reviewed as one complete system.

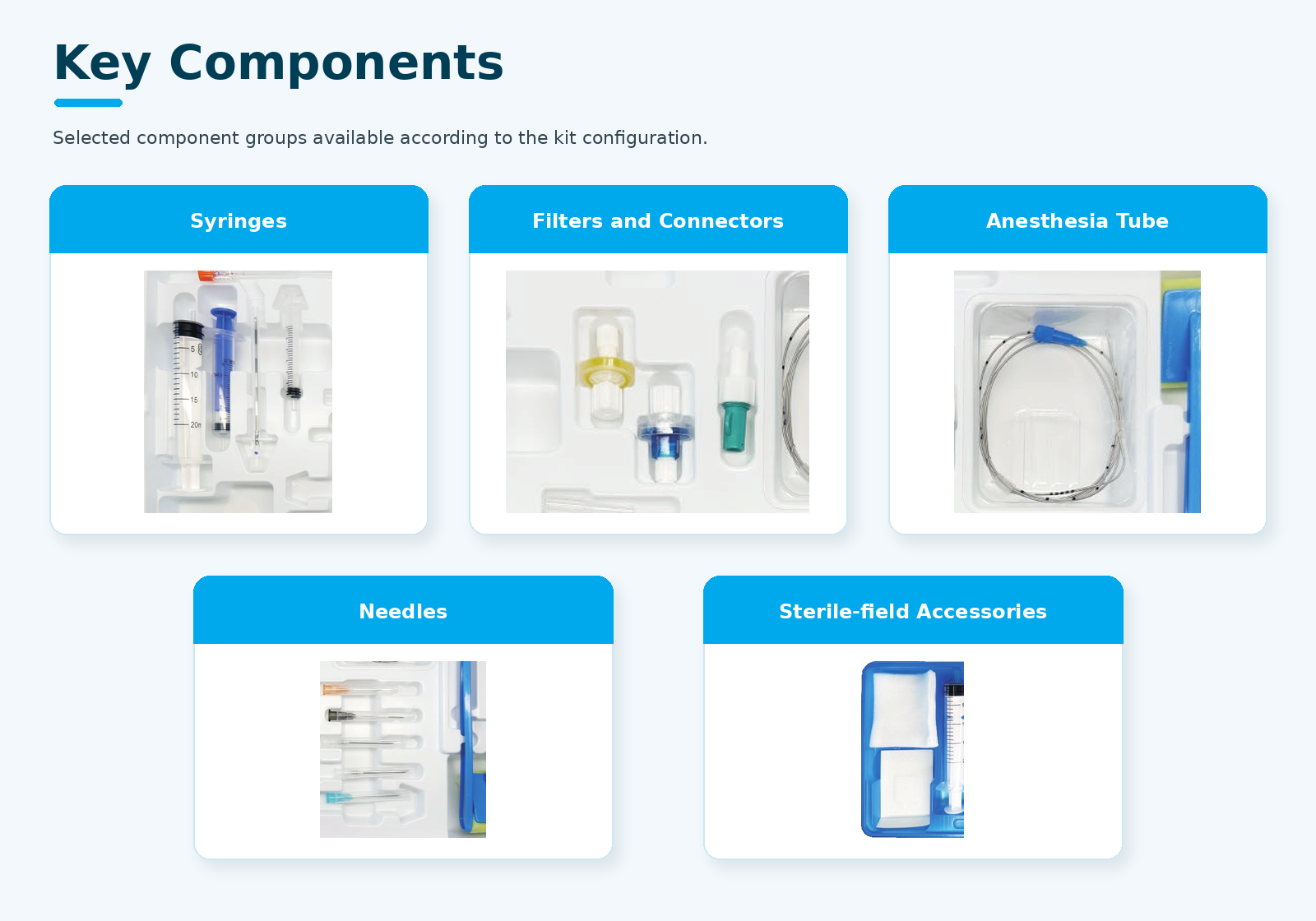

Key Components
The kit can combine puncture needles, syringes, filters, connectors, anesthesia tube components, and sterile-field accessories according to the selected configuration.
Kit Components and Configuration Matrix
| No. | Contents | Specification | Unit | AS-E | AS-E/S II | AS-S | AS-N |
|---|---|---|---|---|---|---|---|
| 1 | Epidural Puncture Needle | 1.2 / 1.6 / 1.8 | 1 pcs | ✓ | ✓ | — | — |
| 2 | Spinal Puncture Needle | 0.5 / 0.6 / 0.7 / 0.9 | 1 pcs | — | ✓ | ✓ | — |
| 3 | Nerve-blocking Needle | 0.5 / 0.6 / 0.7 | 1 pcs | — | — | — | ✓ |
| 4 | Epidural Anaesthesia Tube | 1.0 mm | 1 pcs | ✓ | ✓ | — | — |
| 5 | Tube Connector | 1.0 mm | 1 pcs | ✓ | ✓ | — | — |
| 6 | Liquid Medicine Filter (Blue) | 2.0 μm | 1 pcs | ✓ | ✓ | ✓ | ✓ |
| 7 | Air Filter (Yellow) | — | 1 pcs | ✓ | ✓ | — | — |
| 8 | Sterile Hypodermic Syringe | 3 mL / 5 mL / 20 mL | 1–3 pcs | ✓ | ✓ | ✓ | ✓ |
| 9 | Low Resistance Injector | 5 mL | 1 pcs | ✓ | ✓ | ✓ | ✓ |
| 10 | Sterile Hypodermic Needle | 0.5 / 0.6 / 0.7 / 1.6 | 1–4 pcs | ✓ | ✓ | ✓ | ✓ |
| 11 | Sterile Gloves for Medical Use | 7.0 / 7.5 | 1 pair | ✓ | ✓ | — | — |
| 12 | Disinfectant Brush | — | 1–3 pcs | ✓ | ✓ | ✓ | ✓ |
| 13 | Operation Towel | 65 × 65 cm | 1 pcs | ✓ | ✓ | ✓ | ✓ |
| 14 | Dressing Towel | — | 1 pcs | ✓ | ✓ | ✓ | ✓ |
| 15 | Absorbent Gauze | 7 × 7 cm | 4 pcs | ✓ | ✓ | — | — |
| 16 | Wound Band | — | 1 pcs | ✓ | ✓ | — | — |
| 17 | Catheter Fixed Stick | — | 1 pcs | ✓ | ✓ | — | — |
| 18 | Adhesive Tape | — | 1–3 pcs | ✓ | ✓ | — | — |
The inclusion matrix follows the supplied product manual. Final component combinations, quantities, and optional items should be confirmed according to the selected kit code and approved customer specification.
Scope of Application
Combined epidural and spinal anesthesia kit is suitable for puncture and injection of drugs during epidural anesthesia, lumbar anesthesia, nerve-blocking anesthesia, and combined epidural and lumbar anesthesia.
The appropriate configuration should be selected according to the intended procedure, approved instructions for use, and the requirements of the target market. The product should be used by appropriately trained healthcare professionals.

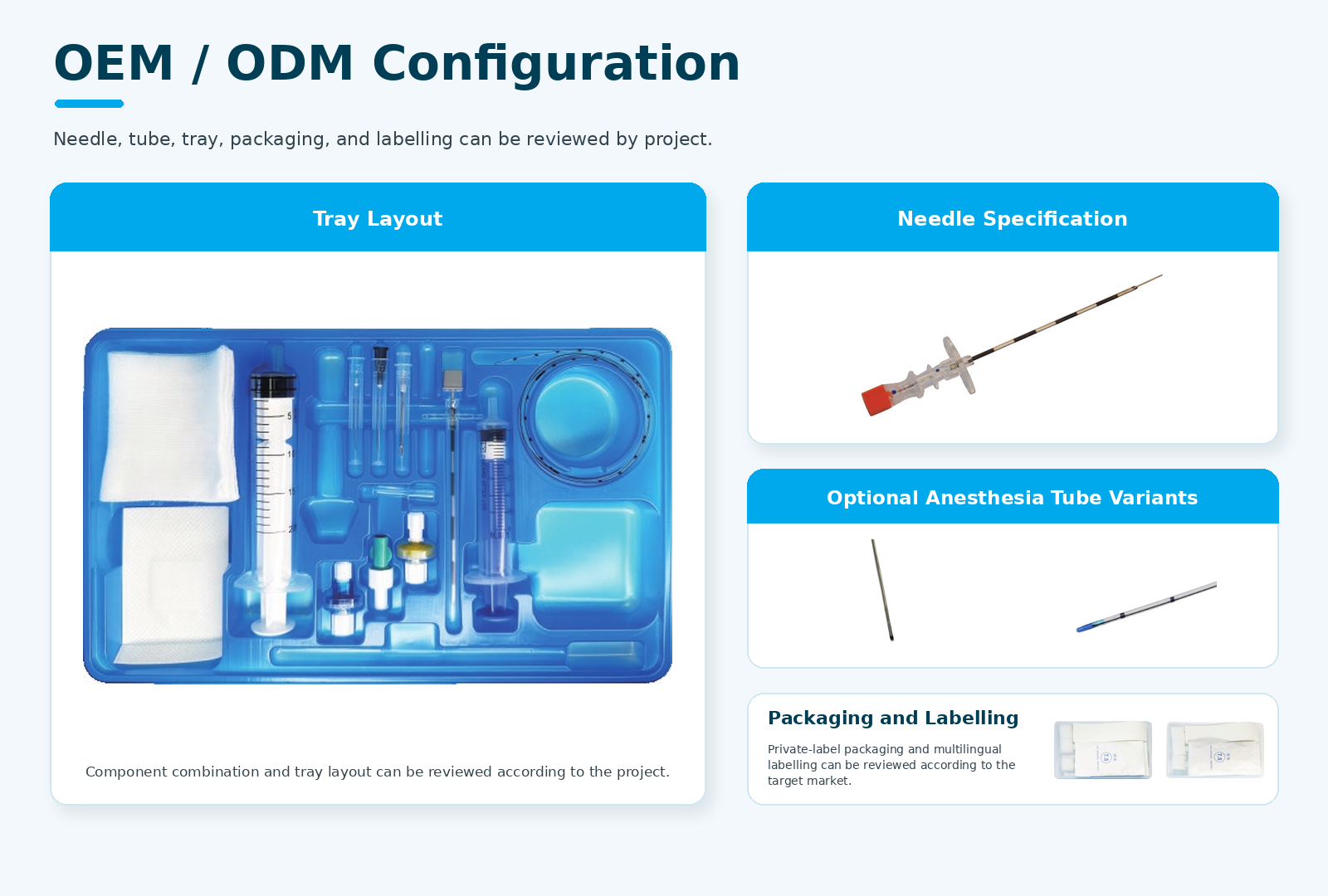

OEM / ODM Configuration
Mekon can support customized Combined epidural and spinal anesthesia kit projects based on a customer component list, reference sample, drawing, packaging requirement, or target product specification.
Quality Assurance
A Combined epidural and spinal anesthesia kit combines needles, anesthesia tubes, connectors, filters, syringes, and sterile-field accessories in one procedure set. Product development and production therefore require coordinated control of component specifications, assembly, tray layout, packaging, and traceability.
- Component specification and incoming inspection support
- Needle and anesthesia tube inspection
- Assembly and configuration tray control
- Packaging and sterilization support according to the final project
- Batch traceability and project documentation
