Closed IV catheter system
Product Features

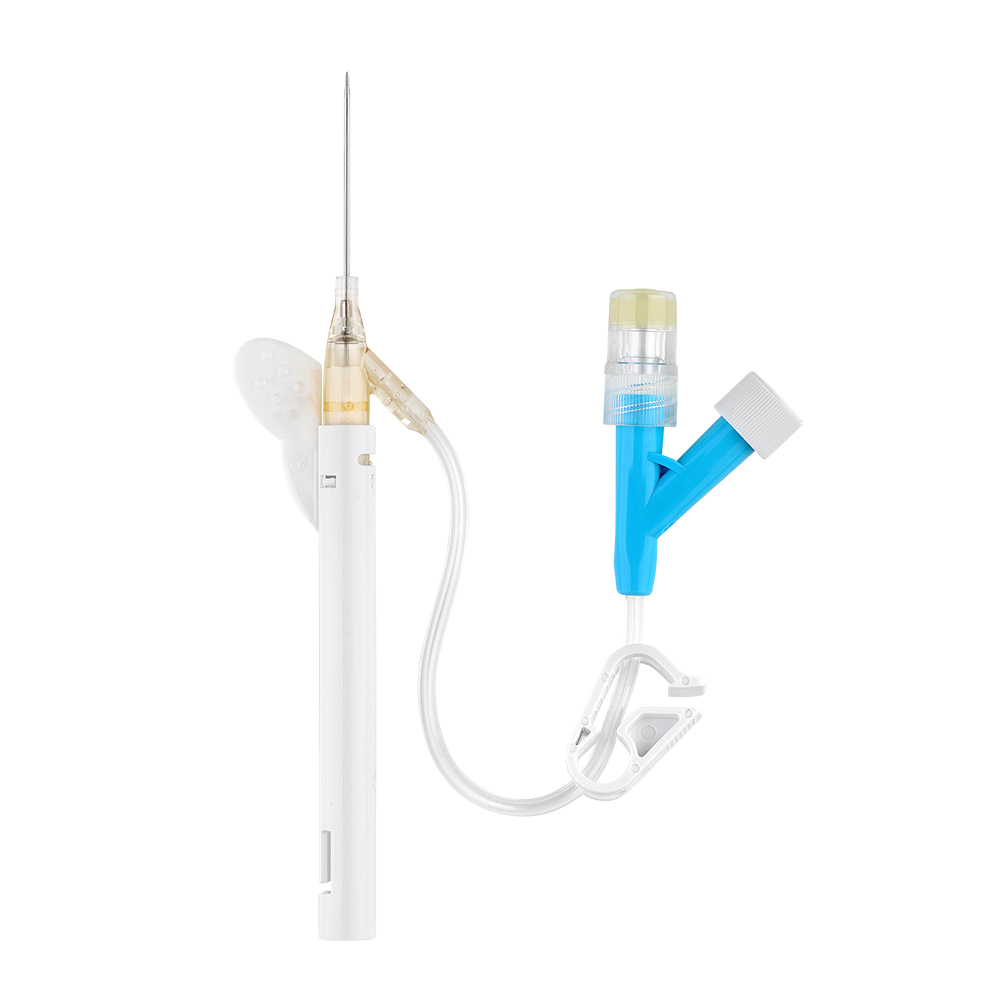

A closed IV catheter system is an advanced type of peripheral intravenous catheter (PIVC) designed with features that enhance safety and reduce complications compared to traditional, open systems. Instead of a simple catheter and hub, a closed system integrates multiple components into a single device.

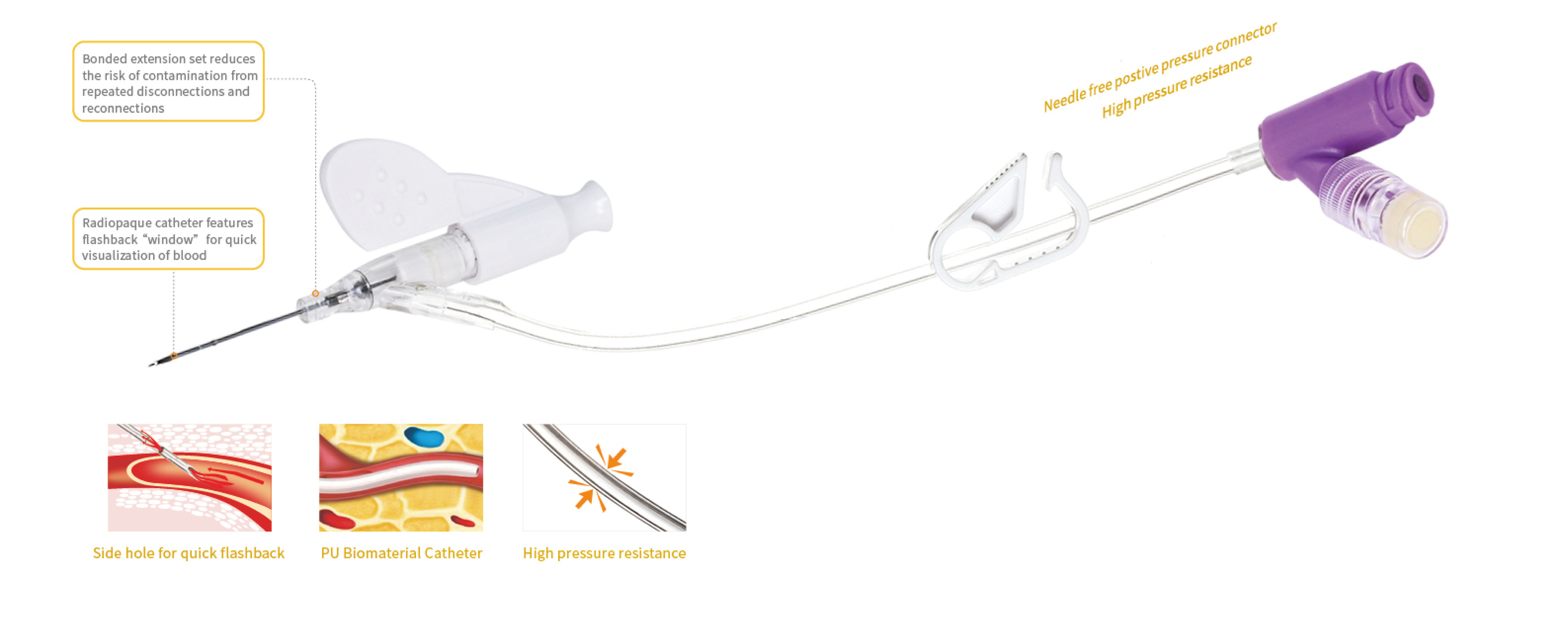

Key Components:
●IV Catheter:A flexible tube, typically made of materials like polyurethane or Teflon, that is inserted into a peripheral vein (usually in the arm or hand) to administer fluids, medications, or blood products.
●Integrated Extension Set: A short length of tubing pre-attached to the catheter hub. This eliminates the need for separate extension sets and reduces the risk of contamination from connections and disconnections.
●Stabilization Device: A mechanism built into the catheter hub or extension set that helps secure the catheter in place. This minimizes movement at the insertion site, reducing the risk of dislodgement and related complications like phlebitis.
●Needle-Free Connector(s):A valve or port at the end of the extension set that allows access to the catheter lumen for administering fluids or medications without using a needle. This significantly reduces the risk of needlestick injuries for healthcare professionals.

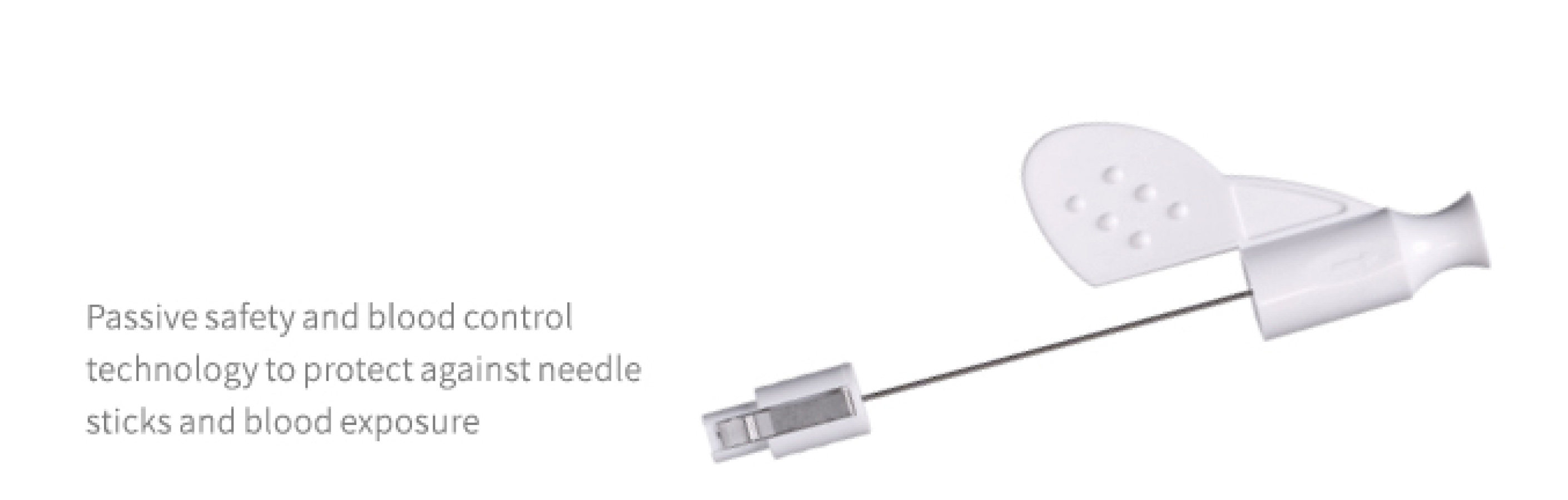

●Safety Mechanism:Many closed systems incorporate a passive or active needle safety mechanism that automatically shields the sharp tip of the needle as it is withdrawn, further preventing needlestick injuries.
●Blood Control Septum: A feature within the hub designed to minimize blood leakage during insertion and needle removal, reducing the risk of blood exposure.
●Vent Plug: A component that prevents blood from leaking out of the extension tubing during insertion.
Product Specifications
|
OD |
GAUGE |
Color code |
General specifications |
Packing quantity |
|
0.6 |
26G |
purple |
26G×3/4" |
1000pcs/carton |
|
0.7 |
24G |
yellow |
24G×3/4" |
1000pcs/carton |
|
0.9 |
22G |
deep blue |
22G×1" |
1000pcs/carton |
|
1.1 |
20G |
pink |
20G×1 1/4" |
1000pcs/carton |
|
1.3 |
18G |
dark green |
18G×1 3/4" |
1000pcs/carton |
|
1.6 |
16G |
medium grey |
16G×2" |
1000pcs/carton |

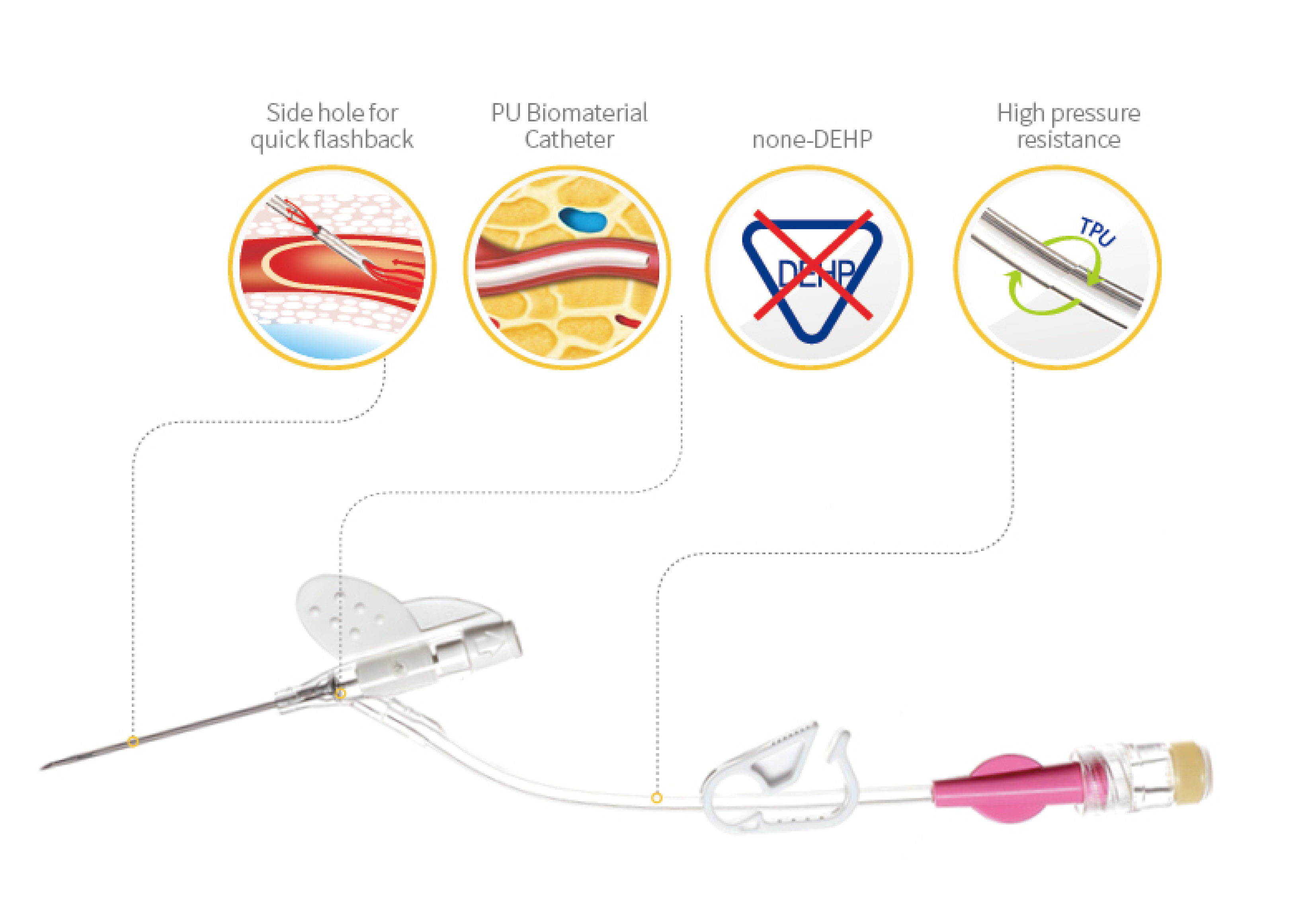

Advantages of Closed IV Catheter Systems:
●Reduced Risk of Infection: The closed design minimizes the potential for microbial contamination by reducing the number of connections and disconnections and limiting blood exposure.
●Decreased Risk of Needlestick Injuries:Needle-free connectors and integrated safety mechanisms protect healthcare professionals from accidental needlesticks.
●Minimized Blood Exposure: Features like blood control septums and vent plugs help contain blood within the system, reducing the risk of exposure for clinicians.
●Longer Dwell Times: Studies have shown that closed systems, particularly those with advanced catheter materials and stabilization features, can remain in place for longer periods (dwell times) compared to open systems, potentially reducing the need for frequent restarts.
●Reduced Risk of Dislodgement: Integrated stabilization platforms significantly decrease catheter movement, leading to fewer accidental dislodgements.
●Fewer Complications: By reducing infection, dislodgement, and phlebitis, closed systems contribute to a lower overall rate of IV-related complications.
●Cost-Effective: While the initial cost of a closed system might be higher, the reduction in complications, restarts, and associated treatment delays can lead to long-term cost savings.
